WILO Star-Z NOVA C (ROW) circulation sealless pump for domestic hot water supply
Also buy with this product
Overview

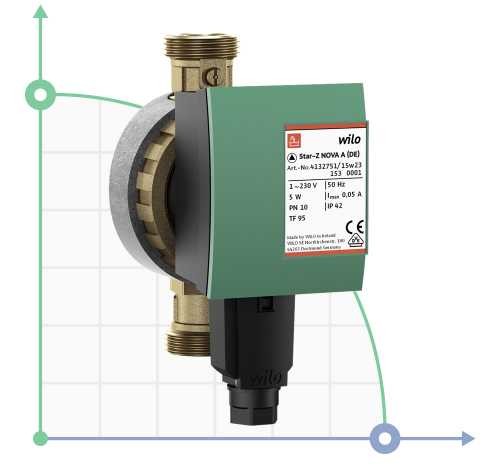

WILO STAR-Z glandless circulation pumps with threaded connection. Application: circulation systems of drinking water supply, for application in industries and equipment for buildings and constructions. This circulation pump is appointed only for the drinking water pumping. Product features and advantages: AC pumps with quick electrical connection, all plastic parts in contact with the pumped medium are KTW-approved, standard thermal insulation for Star-Z 15 TT. Star-Z 15 TT with integrated timer and thermostat, LCD display with symbol language, "red button" technology and automatic recognition of the boiler thermal disinfection, as well as a ball shut-off valve on the suction side and a non-return valve on the pressure side.
Characteristics
| Frequency control | no |
| Producer | Wilo |
| Pump capacity, cu.m/hour | 0.3 |
| Feed height, m | 0.95 |
| Input pipe diameter | G1/2 |
| Output pipe diameter | G1/2 |
| Power supply | 1х220 V, 50 Hz |
| Nom.pressure, Mpa | 1 |
| Max.flow rate, m3/h | 0.3 |
| Max.temperature, C | 110 |
| Installed length mm | 138 |
| Max. head, m | 0.95 |
| Material of flow channel | brass |
| Serial number of the pump | STAR-Z |
| Country of Origin | Germany |
| PumpType | with wet rotor |
| Drive Type | electric |
| Type of configuration | with engine |
