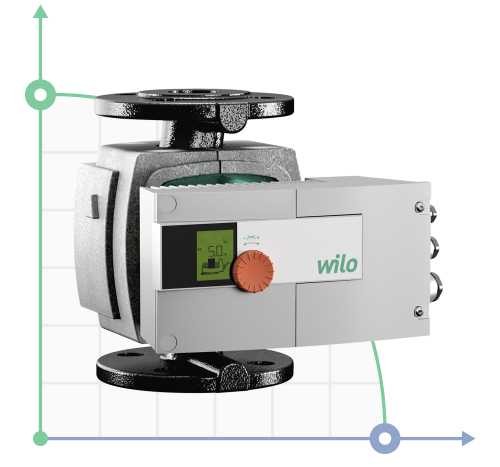

STRATOS 30/1-12 PN6/10 circus. The WILO Z electric pump is without a spring.
Also buy with this product
Overview
WILO STRATOS wet rotor circulation pump, with threaded or flanged connection, electronically switched electric motor with automatic power control. Application: heating systems, air conditioning systems, closed cooling circuits, industrial circulation systems. Product features and benefits: energy savings due to increased system efficiency with the Q-Limit function, improved energy efficiency index EEI ≤0.20 for all single pumps, optimized display for better readability and control, installation on a small area due to compact design and position-independent LCD display, modular concept for connection to all standard bus systems (e.g. Modbus, BACnet, CAN, LON, PLR), proven quality and reliability.
Characteristics
| Producer | Wilo |
| Pump capacity, m3/h | 12 |
| Feed height, m | 12.5 |
| Input pipe diameter | G1 1/4 |
| Output pipe diameter | G1 1/4 |
| Power supply | 1х220 V, 50 Hz |
| Nom.pressure, Mpa | 1 |
| Max.flow rate, m3/h | 12 |
| Max.temperature, C | 110 |
| Installed length mm | 180 |
| Max. head, m | 12.5 |
| Material of flow channel | cast iron |
| Serial number of the pump | STRATOS |
| Country of Origin | Germany |
| PumpType | with wet rotor |
| Drive Type | electric |
| Type of configuration | with engine |
