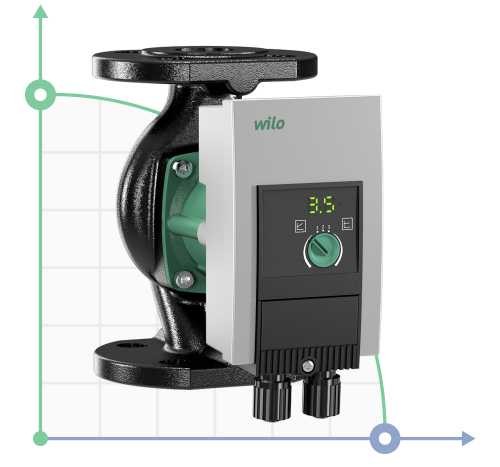

WILO Yonos MAXO 25/0,5-7 PN10 circulation pump with electric control
Also buy with this product
Overview
WILO Yonos MAXO wet rotor circulation pump, with threaded or flanged connection, electronically switched motor and automatic power matching. Application: heating systems, air conditioning systems, closed cooling circuits, industrial circulation systems.
Product features and benefits: LED display provides indication of setpoint values for the delivery head, speed stage or possible errors, convenient adjustment with three speed stages when replacing an uncontrolled standard pump, simplified electrical connection via Wilo-Connector system availability (reliability) due to generalized fault signaling , compact design and reliable easy operation
Characteristics
| Frequency control | Yes |
| Producer | Wilo |
| Pump capacity, cu.m/hour | 8.2 |
| Feed height, m | 7.4 |
| Input pipe diameter | G1 |
| Output pipe diameter | G1 |
| Power supply | 1х220 V, 50 Hz |
| Nom.pressure, Mpa | 1 |
| Max.flow rate, m3/h | 8.2 |
| Max.temperature, C | 110 |
| Installed length mm | 180 |
| Max. head, m | 7.4 |
| Material of flow channel | cast iron |
| Serial number of the pump | Yonos MAXO |
| Country of Origin | Germany |
| PumpType | with wet rotor |
| Drive Type | electric |
| Type of configuration | with engine |
