Circulation pump Wilo Yonos MAXO 40/0.5-12 PN 6/10 with electronic control
Also buy with this product
Overview

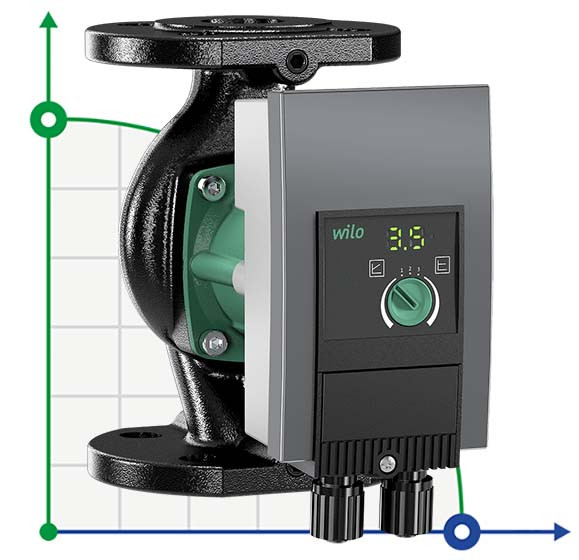

Circulation pump with wet rotor WILO Yonos MAXO, synchronous motor according to ECM technology and integrated electronic power control unit for smooth adjustment of the pressure drop. Can be used for all heating, ventilation, and air conditioning systems.
A choice of adjustment methods for optimal load selection; 3 stages of the number of revolutions (n = constant); LED indication for setting the set value and indication of reported errors; electrical connection with Wilo connector; light signaling of malfunction and contact for general signaling of malfunction.
Characteristics
| Frequency control | Yes |
| Producer | Wilo |
| Pump capacity, m3/h | 21 |
| Feed height, m | 12 |
| Power capacity, kW | 0,55 |
| Material | cast iron |
| Input pipe diameter | DN40 |
| Output pipe diameter | DN40 |
| Protection | IPХ4D |
| Power supply | 1х220 V, 50 Hz |
| Max.flow rate, m3/h | 21 |
| Max.temperature, C | 110 |
| Installed length mm | 250 |
| Max. head, m | 12 |
| Pressure, bar | 10 |
| Shaft material | нержавіюча сталь |
| Serial number of the pump | Yonos MAXO |
| Country of Origin | Germany |
| Type of configuration | with engine |
| Weight, kg | 13 |
