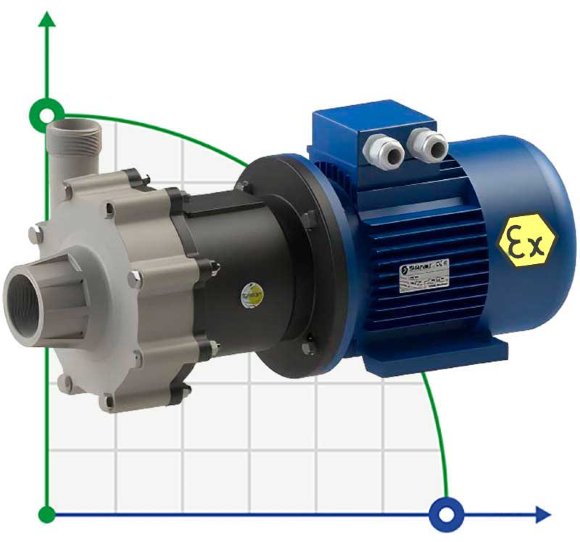

Explosion-proof pump with magnetic coupling FLUIMAC COMPASS CM 30 PP, 2.2 kW, 380V, Ex
Also buy with this product
Documentation
Download instructions, catalog for Explosion-proof pump with magnetic coupling FLUIMAC COMPASS CM 30 PP, 2.2 kW, 380V, Ex
Overview

The magnetic coupled centrifugal pumps of the COMPASS series from the Italian company FLUIMAC are suitable for pumping highly aggressive liquids. Thanks to their innovative system, the COMPASS pumps reduce the risk of leakage and emissions as well as maintenance costs. The motion is transmitted via magnetic couplings without any mechanical seals, a design that guarantees maximum safety and efficiency.
The pumped liquid must be clean and free of solid particles in suspension. Separating the liquid chamber from the atmosphere by means of an insulating jacket is the best solution for pumping aggressive chemicals, highly purified liquids and liquids that are difficult to seal. Hermetic pumps without seals made of thermoplastic injection moulded are the best solution for light duty applications.
Characteristics
Producer | FLUIMAC |
Pump capacity, cu.m/hour | 35 |
Feed height, m | 24 |
Power capacity, kW | 2,2 |
Material | PP |
Input pipe diameter | 2" |
Output pipe diameter | 1" 1/2 |
Rate of turn, rpm | 2 900 |
Power supply | 3х380 V, 50 Hz |
Explosion protection | Yes |
ATEX standard | ATEX II 3G Ex nA IIC T4 Gc |
Operating temperature | -5°C + 65°C |
Max.flow rate, m3/h | 35 |
Max. head, m | 24 |
Flow rate, l/min | 583.3 |
Housing material | PP |
Material of O-ring | EPDM |
Serial number of the pump | COMPASS |
Country of Origin | Italy |
PumpType | with magnetic coupling |
Drive Type | electric |
Installation Type | horizontal |
Type of configuration | with engine |
Availability of spare parts | yes |
Warranty, months | 12 |
Logistics data: |
