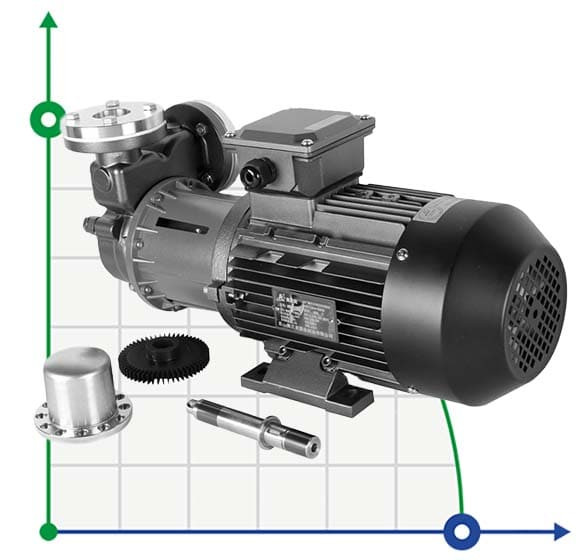

Stainless steel magnetic coupling pump MDH-20U -196°C+400°C
Also buy with this product
1042539
Pre-order only
Documentation
Download instructions, catalog for Stainless steel magnetic coupling pump MDH-20U -196°C+400°C
Overview
MDH series magnetic vortex pump with high and low temperature, the material of the flow parts is stainless steel, and has a certain function of mixing gas and liquid. Safety and stability at high temperatures.
Applications: high temperature mold temperature control, high and low temperature testing equipment, precision semiconductor temperature control, chemical equipment, template temperature control, ultrasonic cleaning equipment, high-quality printing and dyeing, TCU temperature control system, etc.
Circulating medium: water, ethylene glycol, alcohol, heat transfer oil, hydrocarbon solution, silicone oil, ice refrigerant, gasoline, fuel without particles and fibers. Liquids, such as chemical solutions.

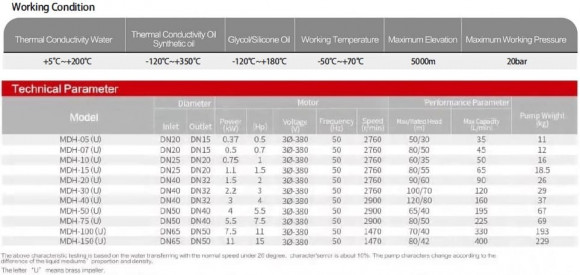

Characteristics
| Temperature (min), °C | -196 |
| Producer | ALUNAK |
| Pump capacity, m3/h | 5.4 |
| Feed height, m | 90 |
| Power capacity, kW | 1,5 |
| Material | AISI 304 stainless steel |
| Input pipe diameter | DN40 |
| Output pipe diameter | DN32 |
| Rate of turn, rpm | 2 760 |
| Power supply | 3х380 V, 50 Hz |
| Explosion protection | No |
| Max.flow rate, m3/h | 5.4 |
| Max.temperature, C | 400 |
| Flow rate, l/min | 90 |
| Nom.head, m | 60 |
| Max. head, m | 90 |
| Pressure, bar | 30 |
| Impeller material | brass |
| Serial number of the pump | MDH |
| Country of Origin | China |
| PumpType | with magnetic coupling |
| Drive Type | electric |
| Installation Type | horizontal |
| Weight, kg | 26 |
