FMP06.10 centrifugal pump with magnetic coupling
Also buy with this product
Documentation
Download instructions, catalog for FMP06.10 centrifugal pump with magnetic coupling
Overview

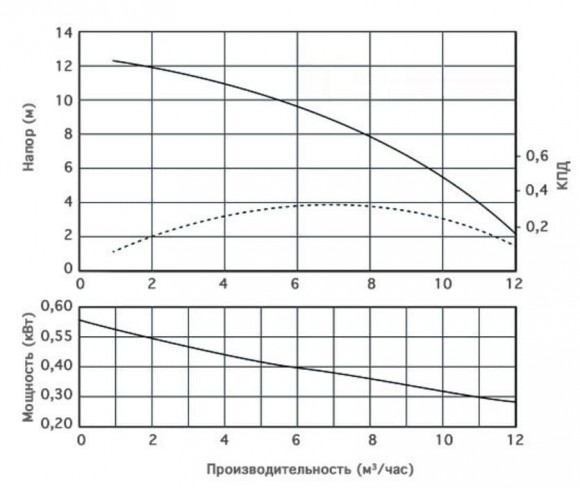

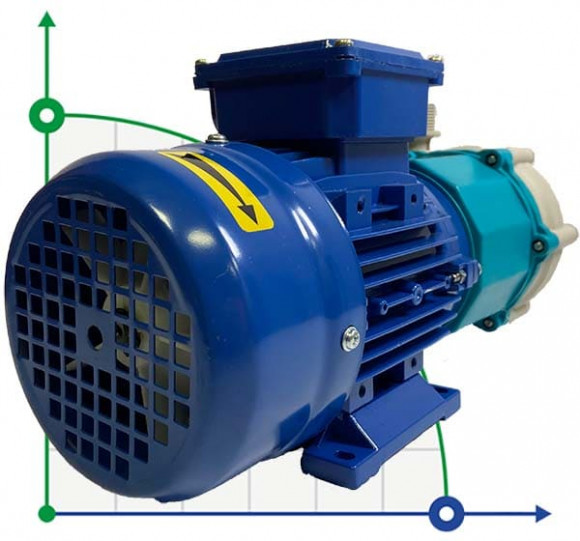

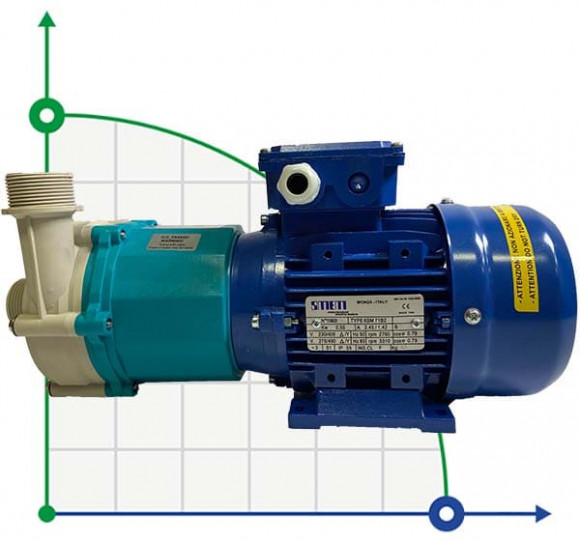

The FLUIMAC FMP-06.10 PP sealed pump with magnetic coupling (analogous to the Argal TMP 06.10 pump) is designed for pumping chemically active media. The design of the pump assumes a moderate wall thickness and is designed for use in conditions of medium or low loads. The pump part is made of polypropylene, Viton cuff seal (polymer), 0.55 kW three-phase motor, threaded connection, outlet pipe diameter 25.5 mm. The capacity of the FMP 06.10 pump is from 2 to 12 m3/h (from 33 to 200 l/min), and the feed height is up to 12 meters. At the same time, the operating flow point is 6 m3/h (100 l/min) at a head of 9.7 meters. The pump is designed for pumping liquids of different densities. The base 0.55 kw engine is designed for densities up to 1.05 kg/DM3.
Application: pump for electroplating, chemistry, acid, alkali, ammonia, acids, CAS, aggressive liquid, aggressive media (graphite pumps), nitric acid,aminospirts: monoethanolamine, diethanolamine, ammonia liquid, ammonium nitrate, butane, butyl methacrylate, viscous liquids and media, aqueous solution of Methyldiethanolamine, aqueous solution of saturated Amine, water with sediment, water containing hydrogen sulfide, deaerated water, dimethylacetamide, dimethyl sulfide, organic sulfides, titanium dioxide, sodium hydroxide, liquid sulfur, ash and slag, sewage, kaolin suspension, carbamate, urea, potassium carbonate, hydrofluoric acid, cryogenic pumps, condensate, water vapor condensate, acidic water condensate and methyethanomine, lignosulfonate, methyethanolamine, saturated Amine, petroleum fractions containing sulfuric acid, nitroproducts, Oleum, purified water, cooling liquid, hydrogen peroxide, drinking water, methyethanolamine solution, regenerated aqueous amine solution, sulfur, sulfuric acid, reverse osmosis systems, mixtures of acids, alcohol, ethylene glycol, triethylene glycol, wastewater, industrial water, terephthalic acid, acetic acid, ammonium uranyl tricarbonate, phenol, formalin, phosphate, phosphorous sludge, acid runoff, phosphoric acid ,alkali (alkaline pumps), ethylene, ethylene benzene, ethylene glycol (solution), ether.
Characteristics
Producer | FLUIMAC |
Pump capacity, m3/h | 12 |
Feed height, m | 12 |
Power capacity, kW | 0,55 |
Material | PP |
Input pipe diameter | 1 1/4" |
Output pipe diameter | 1 1/4" |
Rate of turn, rpm | 2 900 |
Protection | IP55 |
Max.flow rate, m3/h | 12 |
Max.temperature, C | 60 |
Nom.flow rate, m3/h | 6 |
Nom.head, m | 9.7 |
Seal | VITON |
Max. head, m | 12 |
Impeller material | CERAMIC |
Serial number of the pump | FMP |
Country of Origin | Italy |
PumpType | with magnetic coupling |
Drive Type | electric |
Installation Type | horizontal |
Availability of spare parts | Yes |
Warranty, months | 12 |
Analogue for | Argal TMP |
Logistics data: |
