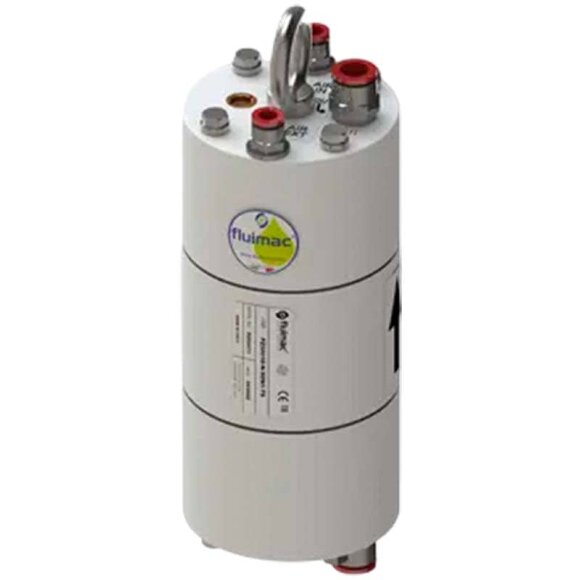

Explosion-proof pneumatic pump for wells FLUIMAC PIEZO PUMP 1, POM, 8 l/min
Also buy with this product
Overview

FLUIMAC PIEZO PUMP is a unique innovative submersible pneumatic pump that can be installed in wells with a minimum internal diameter of 4" for the following purposes:
pumping groundwater as part of remediation activities or remediation plants;
recovery technology for LNAPL / DNALP (light / dense non-aqueous phase liquid);
LNAPL (Light Non-Aqueous Phase Liquid) is a liquid that does not mix with water and is less dense than water. It is mostly various petroleum products such as gasoline, diesel fuel and lubricants.
oil handling in ATEX classified areas;
taking representative low-flow samples at different depths inside wells for environmental monitoring.
an excellent tool for responding to environmental emergencies.
Features:
operation at high water table subsidence (max. about 50 m);
possibility of operation both above and below the water table;
can work with solid particles in the water flow (max. about 2.5 mm);
continuous pumping at low flow rates (about 0.25-4.00 l/min);
easy flow control using compressed air supply;
lightweight, compact and compatible with 4-inch wells;
possibility of exhaust air removal from the well.
Characteristics
Temperature (min), °C | -5 |
Producer | FLUIMAC |
Pump capacity, m3/h | 0.48 |
Feed height, m | 60 |
Material | POMc |
Noise level ,dB | 65 |
Explosion protection | Yes |
Diametr of the product line | 1/4" |
Max.flow rate, m3/h | 0.48 |
Diameter of the pneumatic mainline | 1/4" |
Max.temperature, C | 80 |
Dry suction height, m | 3 |
Max.viscosity, cPs | 5 000 |
Max.air pressure, bar | 6 |
Max.diameter of solid inclusions, mm | 2 |
Flow rate, l/min | 8 |
Dimensions, mm | 90x90x242 |
Max. head, m | 60 |
Serial number of the pump | PIEZO PUMP |
Country of Origin | Italy |
PumpType | membrane pneumatic |
Drive Type | pneumatic |
Installation Type | vertical |
Warranty, months | 12 |
Logistics data: | |
Weight, kg | 1,7 |
