ProducerFerroni
Pump capacity, cu.m/hour9.6
Materialcast iron
Country of OriginItaly
Input pipe diameter30 mm
All specifications
Ukraine: In stockPoland: Pre-order onlyGermany: Pre-order only
Vendor code: 0030.0401
$247.41netto
-+Buy

Documentation

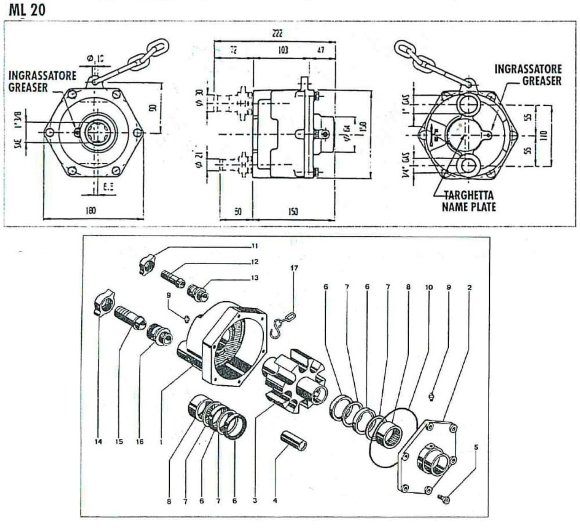

Download instructions, catalog for ML 20 PTO roller pump

Overview

Ferroni
The ML and MT series pumps are the most popular pumps for agricultural activities. Self-priming with rollers that are applied directly to the PTO of the tractor without the use of a driveshaft. Due to the practicality of use and maintenance, they are popular pumps worldwide for agricultural applications such as high-pressure washing, irrigation with or without sprinklers, and in the presence of soils with a large difference in height, displacement and spraying. Roller pumps are preferred by the vast majority of farmers around the world. The rollers rotate inside the pump housing and push the spray solution through the outlet to the nozzle. Roller pumps have a low cost, and they are exceptionally versatile. They operate efficiently at PTO speeds from 540 to 1000 rpm and have a wide pressure range of up to 25 bar and a flow rate of 8 to 300 l/min. The roller pumps have a self-filling function and are easily mounted on the power take-off shaft or connected to the internal combustion engine. Special materials used to make seals, rollers and castings can be selected for compatibility with certain herbicides, pesticides, fungicides and fertilizers. All models are equipped with a chain for attachment to a fixed point on the tractor. The "MLI 25" model is equipped with a brass pressure control valve. A special adapter is available on request for use on cultivators. Cast iron pump body Rotor with nylon rollers cast iron Cover Chain for attachment to a fixed point of the tractor

Characteristics

ProducerFerroni
Pump capacity, cu.m/hour9.6
Materialcast iron
Country of OriginItaly
Input pipe diameter30 mm
Output pipe diameter19 mm
Power capacity, kW4
PumpTypepowered by a PTO
Drive Typemechanical from PTO
The capacity of the shaft, k.s.5,5
Max.flow rate, m3/h9.6
Quantity of splines6x29x35
Dimensions, mm180 x 220 x 190
Max.dry suction head, m6
The rotary speed of PTO, rpm700
Weight, kg10
Pressure, bar25
Availability of spare partsyes
Warranty, months12
Applicationreservoirs filling, tanks filling, extinguishing, glaze, spraying liquid fertilizer
Analogue forBBA pumps, Caprari, Comet, FAMOS, GEA, GPA, Kömag, Rovatti, Svahen, VARISCO, Yuzuak Sprinklers Irrigation, ОМЗ Пинск

Categories:PTO driven pumpRoller pumps Pumps for ammonia water, ammonium hydroxide NH4OHWater pumpsPTO-driven irrigation pumpsTractor PTO pumps
