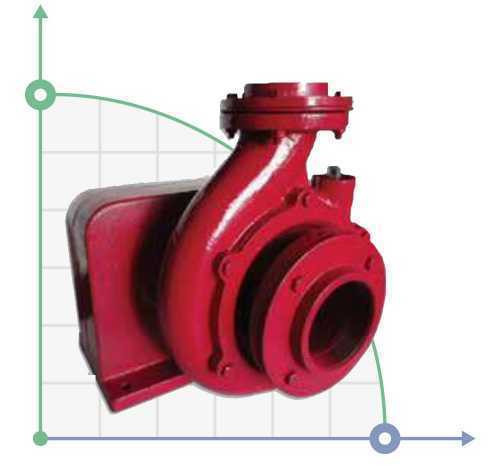

PTO 100-90R Pump driven from the PTO of the automobile
Also buy with this product
Documentation
Download instructions, catalog for PTO 100-90R Pump driven from the PTO of the automobile
Overview
The pump driven by the PTO vehicle (power take-off shaft) can be used on vehicles whose gearbox is equipped with a power take-off shaft.
Pumps of this type can be used on automobile tanks to fill them with water (or other liquid that is chemically inert to materials from which
the flow part of the pump is made) with subsequent transportation and unloading. Wide application of such pumps is possible on a special automobile
equipment that works in construction, in agriculture, where there is no possibility of using electric pumps.
When choosing a pump, pay attention to the direction of rotation of the power take - off shaft-left or right. The pump impeller is driven by
from a compact gear box. The working (water) chamber is protected from leaks by a mechanical mechanical seal, which does not require
maintenance during operation.
Characteristics
| Producer | Ekler |
| Pump capacity, cu.m/hour | 125 |
| Feed height, m | 80 |
| Material | cast iron |
| Input pipe diameter | 3" |
| Output pipe diameter | 4" |
| Rate of turn, rpm | 750 |
| Max.flow rate, m3/h | 125 |
| Quantity of splines | 6x29x35 |
| Max. head, m | 80 |
| Material of flow channel | cast iron |
| Country of Origin | Turkey |
| PumpType | powered by a PTO |
| Drive Type | mechanical from PTO |
| Availability of spare parts | Yes |
| Warranty, months | 12 |
| Application | reservoirs filling, tanks filling, extinguishing, glaze, spraying liquid fertilizer |
| Analogue for | BBA pumps, Caprari, Comet, FAMOS, GEA, GPA, Kömag, Rovatti, Svahen, VARISCO, Yuzuak Sprinklers Irrigation, ОМЗ Пинск |
