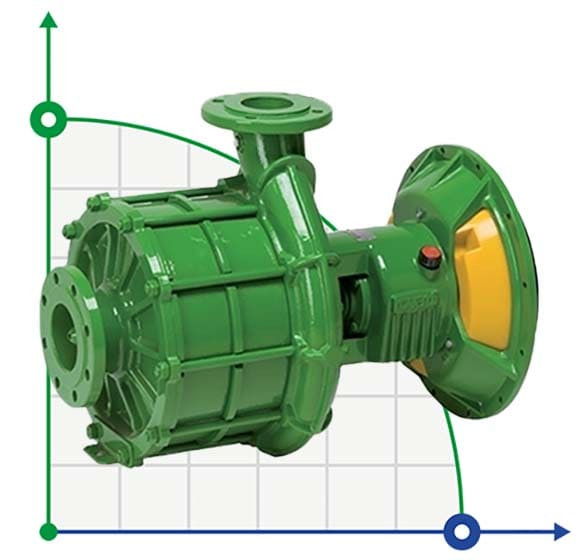

Pump driven by tractor PTO Rovatti F33K100/3E
Also buy with this product
Overview
Rovatti tractor PTO driven pump
The Rovatti FK series pumps are multi-stage, cantilevered pumps driven by a tractor PTO. The pump impellers are mounted on the multiplier speed shaft, which increases the speed of the impellers to the required speed.
Pumps of this type are designed to deliver large volumes of water under considerable pressure. These pumps are used when it is necessary to transport water over long distances, for sprinkler irrigation, for firefighting, for filling tanks, for supplying UAN.
Characteristics of the Rovatti FK series:
Capacity - up to 132 cubic meters per hour
Material of the flow part - cast iron
Characteristics
| Producer | ROVATTI |
| Pump capacity, cu.m/hour | 132 |
| Feed height, m | 108 |
| Power capacity, kW | 50 |
| Material | cast iron |
| Input pipe diameter | DN100 |
| Output pipe diameter | DN 80 |
| Rate of turn, rpm | 1 600 |
| Max.flow rate, m3/h | 132 |
| Max.temperature, C | 90 |
| Max. head, m | 108 |
| Housing material | Сast iron |
| Impeller material | cast iron |
| Country of Origin | Italy |
| PumpType | powered by a PTO |
| Drive Type | mechanical from PTO |
| Warranty, months | 12 |
| Application | reservoirs filling, tanks filling, extinguishing, glaze, spraying liquid fertilizer |
| Weight, kg | 162 |
