Pump driven by PTO tractor Rovatti T2K65 / 2e-TW R.5,5
Also buy with this product
Overview
ROVATTI Pump driven by a tractor PTO
Rovatti pumps of the T2K, T3K series are multi-stage, cantilever pumps driven by a tractor PTO. The impellers of the pump are fixed on the high-speed shaft of the multiplier, which increases the speed of rotation of the working bodies to the required ones.
Pumps of this type are designed to supply a large volume of water under significant pressure. These pumps are used when it is necessary to transport water over long distances, for sprinkler irrigation, for fire fighting, for filling containers, for supplying carbamido-ammonia mixtures.

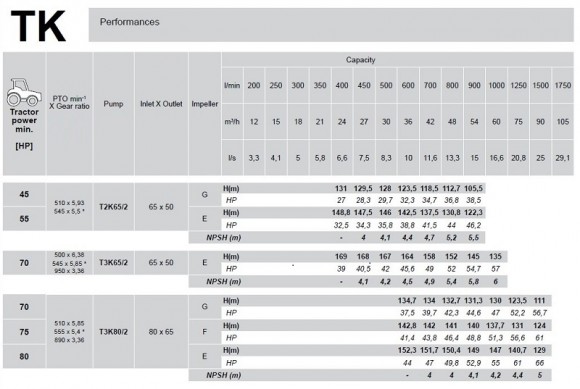

Characteristics of Rovatti series T2K, T3K
Capacity-up to 90 cubic meters. in an hour
Pressure-up to 17 ATM
Material of execution of the flow Part-cast iron

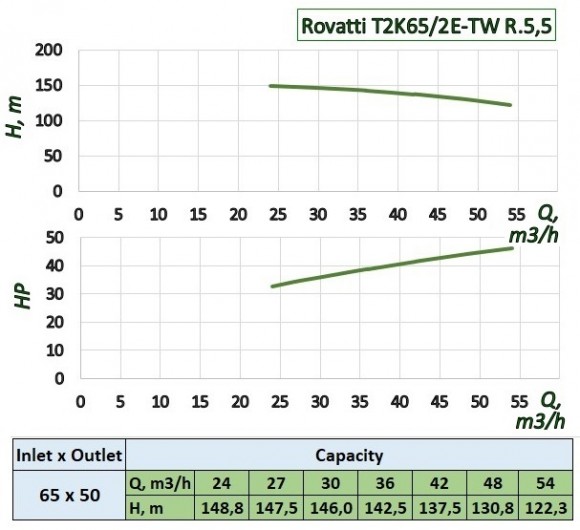

Characteristics
| Producer | ROVATTI |
| Pump capacity, cu.m/hour | 54 |
| Feed height, m | 148.8 |
| Material | cast iron |
| Input pipe diameter | 65 |
| Output pipe diameter | 50 |
| The capacity of the shaft, k.s. | 46,8 |
| Max.flow rate, m3/h | 54 |
| Tractor power min, hp | 55,8 |
| The rotary speed of PTO, rpm | 545 |
| Max. head, m | 148.8 |
| Material of flow channel | cast iron |
| Serial number of the pump | TK |
| Country of Origin | Italy |
| PumpType | powered by a PTO |
| Drive Type | mechanical from PTO |
| Warranty, months | 12 |
| Application | reservoirs filling, tanks filling, extinguishing, glaze, spraying liquid fertilizer |
| Analogue for | BBA pumps, Caprari, Comet, Ekler, FAMOS, GEA, GPA, Kömag, Svahen, VARISCO, Yuzuak Sprinklers Irrigation, ОМЗ Пинск |
