ProducerVeneroni
Pump capacity, cu.m/hour684
Feed height, m43
Materialcast iron
Serial number of the pumpLVT
All specifications
Ukraine: Pre-order onlyPoland: Pre-order onlyGermany: Pre-order only
Vendor code: 1027130
Specify the price and terms of delivery with the manager

Estimated delivery date: 23.05.2024

$0.67netto
-+Buy

Documentation

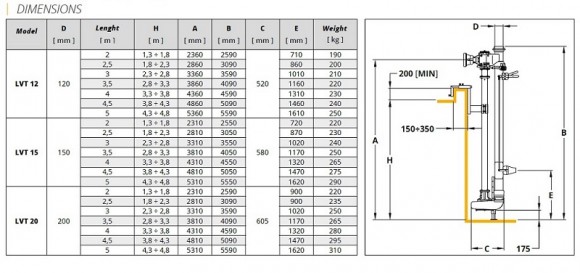

Download instructions, catalog for Veneroni LVT 20/1000, 3,5m, 684 m3/h vertical pump from PTO

Overview

Veneroni
The LVT pump offers the highest performance of the entire range, using the power of a tractor. Equipped with an adjustable mixing nozzle, it ensures efficient homogenization of the sediment present in the liquid to be treated. The trolley, available as an accessory, allows you to move up, providing greater versatility. The LVT pump is also available in the P version without mixing nozzle and in the S version with hydraulic drive of the mixing nozzle valve.

Characteristics

ProducerVeneroni
Pump capacity, cu.m/hour684
Feed height, m43
Materialcast iron
Serial number of the pumpLVT
Country of OriginItaly
Output pipe diameter200
Rate of turn, rpm2 000
PumpTypepowered by a PTO
Drive Typemechanical from PTO
Installation Typevertical
The capacity of the shaft, k.s.101
Max.flow rate, m3/h684
Max. head, m43
Pump body materialчугун GS 400
Housing materialcast iron GS 400
Working length, m3,5
The rotary speed of PTO, rpm1 000
Weight, kg265
Warranty, months12

Categories:PTO driven pumpPumps for ammonia water, ammonium hydroxide NH4OHPumps and mixers for biogas, animal husbandry, IndustriePumps for manure, pusVertical pump LVT from PTOTractor PTO pumps
