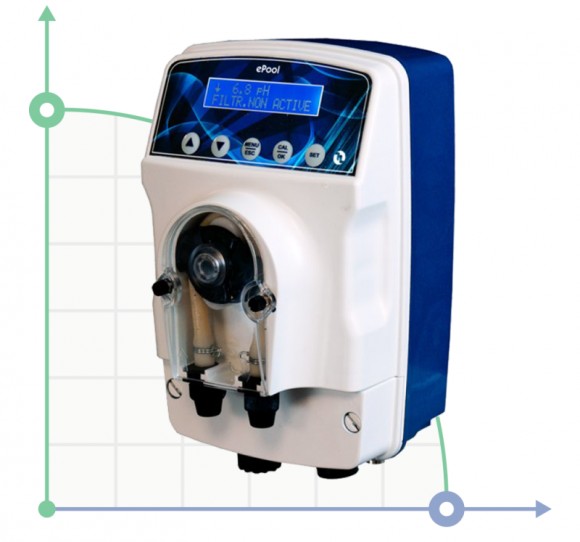

Peristaltic pump with integrated ePOOL RX controller 1,5-1,5 220/240V Santopren
Also buy with this product
Documentation
Download instructions, catalog for Peristaltic pump with integrated ePOOL RX controller 1,5-1,5 220/240V Santopren
Overview
ePOOL is a new generation of compact dosing and monitoring stations for private swimming pools with a volume of up to 150 M3.
Peristaltic pumps with integrated ph or RX level controller (optional).
Cross functional input voltage 100-250V (for models 2-2 and 3-3).
Backlit LCD display.
Electronic control.
Measurement ranges: 5÷9 ph; +300÷+900 mV.
Proportional dosing mode-a new microelectronic technology that works in real time: the pump on/off frequency slows down as it approaches the setpoint.
Built-in dosage control system: by time and volume! automatic sensor calibration and verification system!
Pump capacity: from 1.5÷3 L/H, pressure up to 3 Bar.
Delayed pump start-up.
Support for reagent level sensor and flow sensor (flow sensor not included).
Relay output of the on / off alarm for continuous dosing time.
Main advantages: simple programming procedure, parameter selection and pump calibration,
Characteristics
| Producer | ETATRON D.S. |
| Power supply | 1х220 V, 50 Hz |
| Control | Microprocessing |
| Power capacity, Wt | 15 |
| Measuring parameters | Rx |
| Flow rate, l/h | 1.5 |
| Hose standard size | 4,8x9,6 |
| Pressure, bar | 1.5 |
| Measuring parameters | 1 |
| Serial number of the pump | ePOOL |
| Country of Origin | Italy |
| PumpType | dosing peristaltic |
| Drive Type | electric |
| Availability of spare parts | Yes |
| Application | antisepsis, liquid powders, acid, coagulant, misalignment, chemistry, alkalis |
| Analogue for | AquaViva, ASeko, Descon trol S, Emec, FWT, Injecta, Seko |
