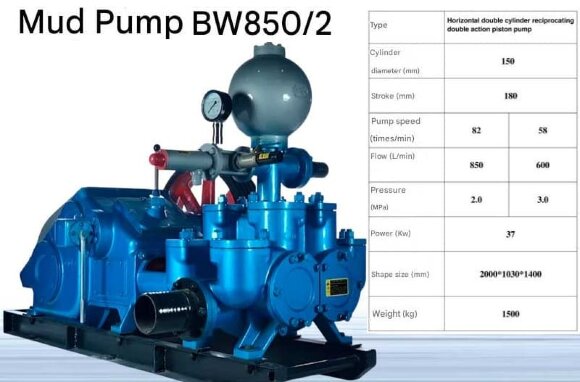

BW850/2 piston drilling pump
Also buy with this product
1042539
Pre-order only
Documentation
Download instructions, catalog for BW850/2 piston drilling pump
Overview

A drilling pump is used on drilling rigs, its main purpose being to ensure the circulation of drilling mud in the well. High pressure generated by this pump is used for flushing. The main purpose of such a pump is to ensure the circulation of drilling mud and prevent its settling during drilling, as well as to lift the drilled rock outwards. A drilling pump makes it easy to clear the bottom hole and the wellbore from rock. It is used in geological exploration, engineering research, and water well drilling.
The pump features a compact design, small volume, reliable operation, and ease of use.
Characteristics
Piston stroke length, mm | 180 |
150 | |
Producer | BTS Engineering |
Pump capacity, m3/h | 51 |
Power capacity, kW | 37 |
Nom.pressure, Mpa | 2 |
Plunger strokes per minute | 82 |
Flow rate, l/min | 850 |
Dimensions, mm | 2000x1030x1400 |
Serial number of the pump | BW |
Country of Origin | China |
PumpType | drilling |
Warranty, months | 12 |
Logistics data: | |
Weight, kg | 1 500 |
