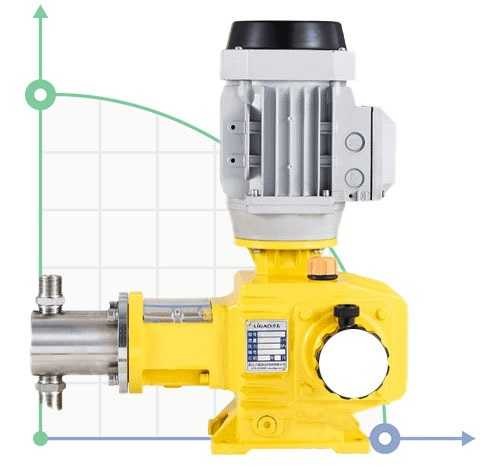

BSX 85/1.6 AISI 304 plunger metering pump
Also buy with this product
Overview
BSX series are plunger/piston type positive displacement, reciprocating metering pump with high performance and accuracy dosing features. The plunger makes harmonic push and pull motion by the crankshaft. It is widely used in industries such as oil and gas, chemical or petrochemical, foaming, electricity, boiler, etc.
Features:
Flow rate can be adjusted via unique adjusting mechanism from 0-100%
The adjustment can be carried when pump is in operation or at stop
The steady accuracy is ±1% from 30%-100% of the maximum output
Automatic operation is achieved by variable speed drive
Special application for high temperature or low temperature is available with cooling jacket or heating jacket
Materials:
Pump head: AISI304, AISI316
Pump case: Cast Iron
Plunger: Ceramic or AISI316 coated with ceramic
Packing seal: PTFE and AISI316 Ring
Valves: AISI304, AISI316
Valve Ball: AISI304, AISI316, Ceramic
EX-proof motor is available on request.
Characteristics
| Producer | BTS Engineering |
| Pump capacity, cu.m/hour | 0.085 |
| Power capacity, kW | 0,37 |
| Input pipe diameter | DN 10 |
| Output pipe diameter | DN 10 |
| Power supply | 3х380 V, 50 Hz |
| Nom.pressure, Mpa | 1,6 |
| Max.flow rate, m3/h | 0.085 |
| Flow rate, l/h | 85 |
| Plunger diameter, mm | 35 |
| Pressure, bar | 16 |
| Connection | DN15 |
| Housing material | Сast iron |
| Material of flow channel | AISI 304 stainless steel |
| Meterial of head pump | AISI 304 stainless steel |
| Serial number of the pump | BSX |
| PumpType | plunger motor |
| Drive Type | electric |
| Application | nitric acid, antispumina, breviol, bukofouma, aluminum hydroxide, water metering, dosing of acids and alkalis, preservatives dosing, syrups dosing, dosing fruit concentrates, dosing additives for glaze, flavors dosage, yeast dosage, enzyme dosage, essences dosage, kebospuma, minifoma, formalin |
| Analogue for | AQUA, Astralpool, DOSITEC, Emec, FWT, Grundfos, Injecta, Jesco Pump, MILTON ROY, Milwaukee, OBL, PRODOSE, ProMinent, Seko, Sera, WILDEN |
