- Wastewater treatment pump ATLAS DOS 11.2-05-WIFI-0.50HP-5.47-2800-A-N-HYPALON

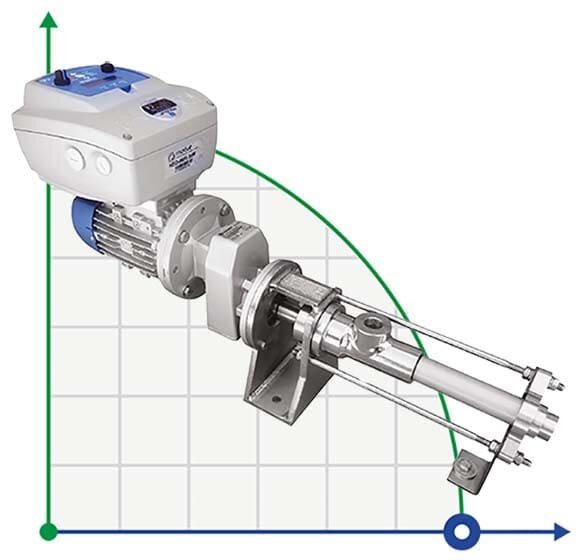

Wastewater treatment pump ATLAS DOS 11.2-05-WIFI-0.50HP-5.47-2800-A-N-HYPALON
Also buy with this product
1042539
Pre-order only
Documentation
Download instructions, catalog for Wastewater treatment pump ATLAS DOS 11.2-05-WIFI-0.50HP-5.47-2800-A-N-HYPALON
Overview

The ATLAS DOS series of screw and metering pumps is the ideal solution for low-flow pumping units that require high volume control accuracy and are offered at an affordable price. These pumps provide pumping of liquids with a low and high degree of viscosity, as well as pumping of abrasive liquids.
Functions: uninterrupted flow of pumped liquid; close and precise connections; no ripple; no check valves; suitable for small rooms; withstands high discharge pressure; reverse pumping direction.
Industrial use: performing waste treatment tasks; high-precision pumping of polymer raw materials; sampling/dosing application; high-precision pumping of polymer raw materials; chemical dosing for production purposes; application for measuring and manufacturing glue; additive dosing in oil mixing tasks; application for municipal wastewater treatment.
Characteristics
| Screw speed, rpm | 500 |
| Producer | AlphaDynamic |
| Pump capacity, m3/h | 0.068 |
| Feed height, m | 120 |
| Power capacity, kW | 0,37 |
| Material | AISI 316 stainless steel |
| Input pipe diameter | G 1/2" |
| Output pipe diameter | G 1/2" |
| Rate of turn, rpm | 2 800 |
| Power supply | 3х380 V, 50 Hz |
| Explosion protection | No |
| Max.flow rate, m3/h | 0.068 |
| Max.temperature, C | 100 |
| Flow rate, l/h | 68 |
| Max. head, m | 120 |
| Pressure, bar | 8 |
| Housing material | AISI 316 stainless steel |
| Rotor material | AISI 316 stainless steel |
| Stator material | HYPALON |
| Serial number of the pump | ATLAS DOS |
| Country of Origin | Greece |
| PumpType | screw type |
| Drive Type | electric |
| Installation Type | horizontal |
| Application | dosages of chemicals, adhesive dosage, dosing of additives when mixing lubricants, high-precision dosing of polymers, wastewater treatment programs, sampling |
| Logistics data: |
