Solo lift with remote control AIZL-750W, 18/11.5, 0.75 kW, 220V, 2800 rpm
$-165
Also buy with this product
1042539
Pre-order only
Documentation
Download instructions, catalog for Solo lift with remote control AIZL-750W, 18/11.5, 0.75 kW, 220V, 2800 rpm
Overview

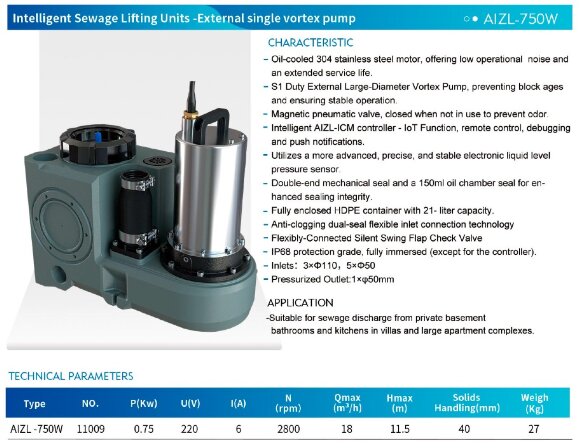

Application: Suitable for sewage drainage from private basement bathrooms and kitchens in villas and large apartment complexes, offices, bomb shelters. Features: - 304 stainless steel oil-cooled motor, ensuring low noise during operation and extended service life. - S1 type large-diameter external vortex pump, preventing clogging and ensuring stable operation. - Pneumatic magnetic valve, closed when not in use, to prevent unpleasant odor. - AIZL-ICM intelligent controller - IoT function, remote control, debugging and push notification. - Uses a more advanced, accurate and stable electronic liquid level pressure sensor. - Double-sided mechanical seal and 150ml oil chamber for improved tightness. - Fully enclosed 21 liter HDPE container. - Flexible inlet connection with double seal to prevent clogging. - Flexible connection silent rotary check valve. - IP68 protection, fully submersible (except controller). - Inlets: 3×Φ110, 5×Φ50 - Pressure outlet: 1×Φ50 mm
Characteristics
| Producer | AIZL |
| Pump capacity, m3/h | 18 |
| Feed height, m | 11.5 |
| Power capacity, kW | 0,75 |
| Rate of turn, rpm | 2 800 |
| Power supply | 1х220 V, 50 Hz |
| Type | каналізаційна установка |
| Serial number of the controller | AIZL-ICM |
| Max.flow rate, m3/h | 18 |
| Max.temperature, C | 60 |
| Tank volume | 21 |
| Max.diameter of solid inclusions, mm | 40 |
| Flow rate, l/min | 300 |

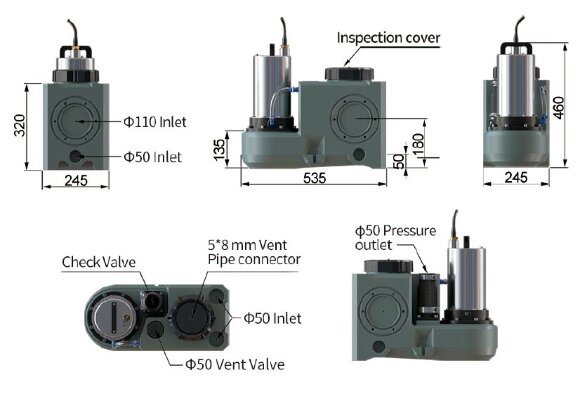

| Dimensions, mm | 535x245x460 |
| Max. head, m | 11.5 |
| Country of Origin | China |
| PumpType | vortex |
| Drive Type | electric |
| Weight, kg | 27 |
