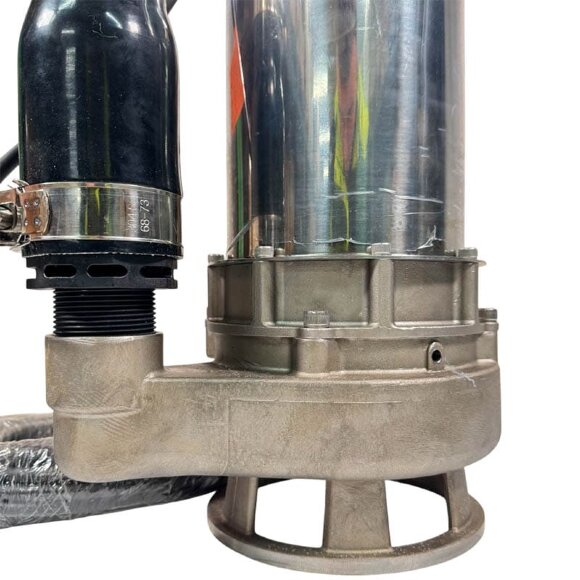

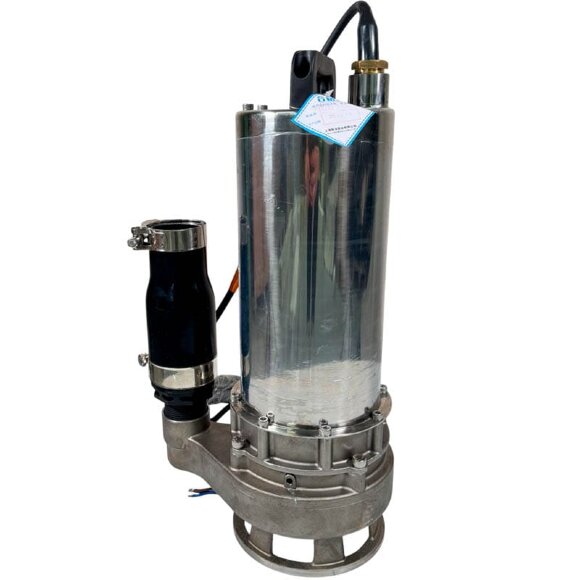

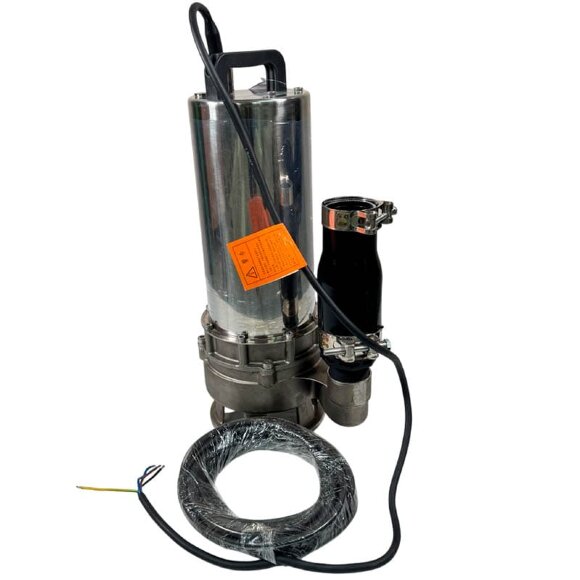

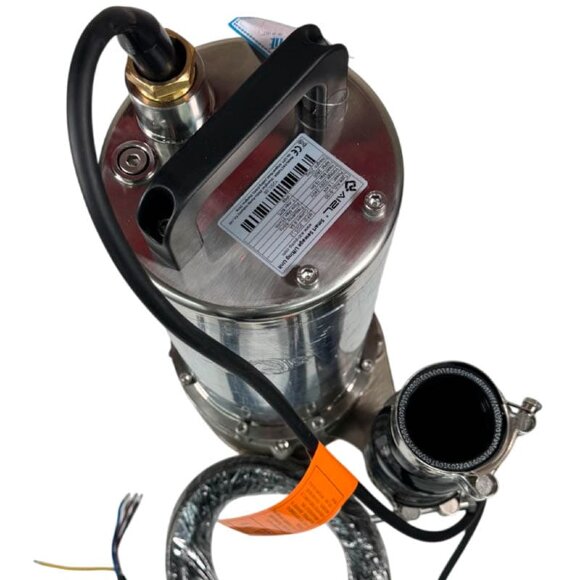

Stainless steel sewage pump AIZL-S150, 27/19.5, 1.5 kW, 220V, 2800 rpm
$-9
Also buy with this product
1042539
Pre-order only
Documentation
Download instructions, catalog for Stainless steel sewage pump AIZL-S150, 27/19.5, 1.5 kW, 220V, 2800 rpm
Overview
Sewage pump applications: domestic sewage, wastewater, rainwater and surface water discharge. Features: - Pump, impeller, motor housing and motor shaft made of 304 stainless steel - Oil-cooled motor. - IP68 protection rating, maximum immersion depth 5 m. - Solids handling: up to 30 mm. - Outlet pipe: 1½". - Double mechanical seal, oil chamber seal, lip shaft seals. - Waterproof cable: 8 m/ - S1 motor (supports continuous operation). - Built-in thermal winding protection.
Characteristics
| Producer | AIZL |
| Pump capacity, m3/h | 27 |
| Feed height, m | 19.5 |
| Power capacity, kW | 1,5 |
| Material | AISI 304 stainless steel |
| Rate of turn, rpm | 2 800 |
| Power supply | 1х220 V, 50 Hz |
| Max.flow rate, m3/h | 27 |
| Max.diameter of solid inclusions, mm | 30 |
| Flow rate, l/min | 450 |
| Dimensions, mm | 255x175x480 |
| Max. head, m | 19.5 |
| Country of Origin | China |
| Weight, kg | 24 |
Categories:Sewer stationsSewerage installations
