Electromagnetic metering pumps PDE HC997 PH-RX-4B 10-04/12-02/14-00 230V PVDF-PTFE-VT
Also buy with this product
Overview

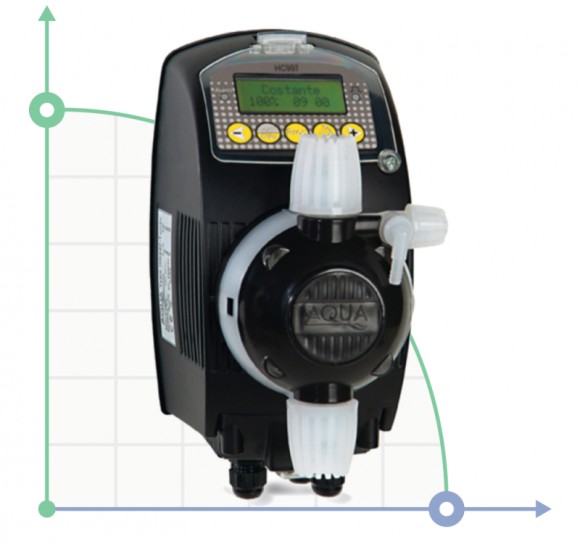

Electromagnetic metering pumps HC997 - mod. B.
Multifunctional dosing pump with an electromagnet drive for constant and proportional dosing. A versatile and fully programmable pump for a variety of applications.
- The tank is made of heavy-duty PBT (polybutylene terephthalate) material, suitable for working with high temperatures (both the environment and the pumped product);
- Inlet for the level sensor;
- Setting the injection frequency with a digital indicator (0-100%);
- Power supply: 220V AC - 50 / 60Hz. On demand-110V;
- On-Off Switch;
- Protection class-IP65;
- Digital control and adjustment using 5 buttons and the backlight of the 2x16 liquid crystal indicator;
- Manual control air intake valve;
- Wall mounting is also provided on the floor of the installation site (mounting brackets included).
Digital metering pump HC997 - mod. B constant or proportional dosing with built-in controller measuring pH (0 to 14) or Red / Ox potential (0 to 999 mV). Control by signal (4-20 mA) from an external pH sensor or Red / Ox potential (not included in the delivery set). Has an adjustable piston stroke rate (0 ... 100% or 0 ... 20%). It has a reflection of an input signal, a statistics menu, an input for connecting a level sensor. Has a standby mode. Has a built-in controller with weekly timer functions.
Characteristics
| Producer | AQUA |
| Material | PVDF |
| Power supply | 1х220 V, 50 Hz |
| Control | Microprocessing |
| Power capacity, Wt | 22 |
| Dosage mode: Continually ON-OFF | Yes |
| Input foe sensor | No |
| Model | mod. B - рН/Rx |
| Dosage mode: proportional PROP | Yes |
| Input for sensor CD | No |
| Product regulation 0-100% | Yes |
| Input foe temperature sensor | No |
| Input for level sensor reagent | Yes |
| Input mA | Yes |
| Pump head type | PVDF 1/2" |
| Flow rate, l/h | 14 |
| Input 4-20 mA | Yes |
| Output service relay | Yes |
| Pulse input(From Flowmetwer) | No |
| Support for flow sensor | No |
| Hose standard size | 4x6 |
| Input foe sensor PH | Yes |
| Diaphragm stroke per min. | 180 |
| Pressure, bar | 4 |
| Input for sensor RX | Yes |
| Number of pulses | 180 |
| Pump body material | PVDF |
| Serial number of the pump | HC997 |
| Country of Origin | Italy |
| PumpType | dosing solenoid |
| Drive Type | electric |
| Application | algaecide, hypochlorite, caustic, acid, coagulant, of hydrochloric acid, alkalis |
| Weight, kg | 3 |
