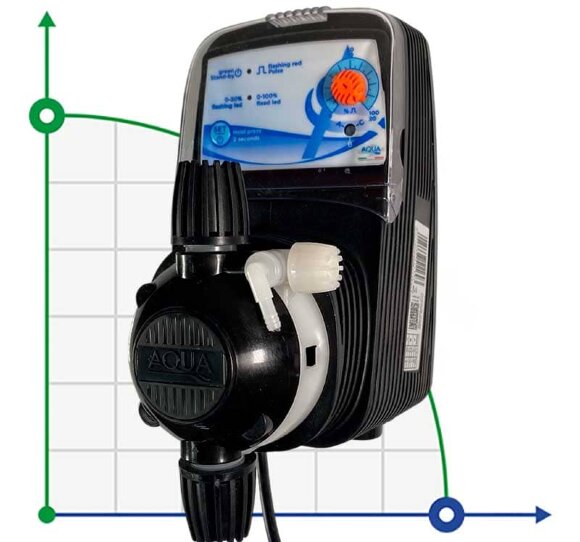

Pool dosing pump PDE HC151+ CST M80 PVDF-CE-VT + SHUKO PLUG, 4-20 l/h, 20-1 bar
Also buy with this product
1042539
Pre-order only
Documentation
Download instructions, catalog for Pool dosing pump PDE HC151+ CST M80 PVDF-CE-VT + SHUKO PLUG, 4-20 l/h, 20-1 bar
Overview
Analogue metering pump with electromagnetic drive. Constant dosing mode. - Reinforced polypropylene housing, suitable for aggressive working environments; - Stroke frequency adjustment in percentage; - Flow rate adjustment from 0-100% or from 0-20%; - Power supply 230V AC - 50/60Hz; - Protection degree IP65; - Wall mounting bracket included in the installation kit; OPERATING MODE - Constant flow rate (flow rate in %); - 3 different performance settings to choose from.
Characteristics
| Electromagnet | M80 |
| Producer | AQUA |
| Material | PVDF |
| Power supply | 1х220 V, 50 Hz |
| Control | Manual |
| Power capacity, Wt | 22 |
| Dosage mode: Continually ON-OFF | Yes |
| Input foe sensor | No |
| Dosage mode: proportional PROP | No |
| Input for sensor CD | No |
| Input foe temperature sensor | No |
| Input for level sensor reagent | No |
| Pump head type | PVDF 1/2" |
| Flow rate, l/h | 20 |
| Input 4-20 mA | No |
| Pulse input(From Flowmetwer) | No |
| Protection level | IP65 |
| Hose standard size | 4x6 |
| Input foe sensor PH | No |
| Pressure, bar | 20 |
| Input for sensor RX | No |
| Meterial of head pump | PVDF |
| Serial number of the pump | HC151 |
| Country of Origin | Italy |
| PumpType | dosing solenoid |
| Drive Type | electric |
| Gross weight, kg | 2.86 |
| Length of transport packing, cm | 250 |
| Width of transport packing, cm | 192 |
| Height of transport packing, cm | 160 |
Categories:Solenoid pump dispenserDosing pumps
