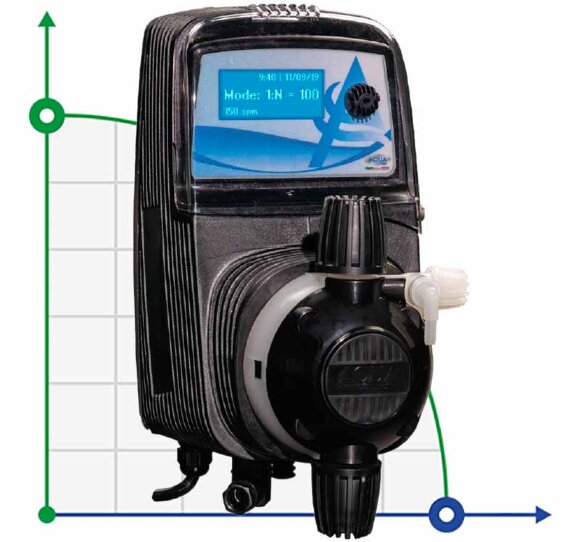

Dosing pump PDE HC151+ MULTIFUNCTION M70 240V PVC-PVDF-CE-DT (SA), 1.8-14 l/h, 20-1 bar
Also buy with this product
Documentation
Download instructions, catalog for Dosing pump PDE HC151+ MULTIFUNCTION M70 240V PVC-PVDF-CE-DT (SA), 1.8-14 l/h, 20-1 bar
Overview
Digital multi-function dosing pump with electromagnetic drive. Constant or proportional dosing mode. - Reinforced polypropylene housing, suitable for aggressive working environments; - Inputs: level sensor, inhibitor, proximity sensor; - Standard power supply 110 ÷ 230 V AC - 50 / 60 Hz - Language and unit selection; - Graphic display 132x56 pixels; - Simplified menu access via knob / encoder; - IP65 protection degree; - Wall mounting bracket included in the installation kit. OPERATING MODE - Mode proportional to 4-20 mA signal; - Mode proportional to the pulse signal of the water meter: 1xN; 1xN (M); 1: N; PPM; - Programming of the level sensor intervention delay; - Daily, weekly timer for programmed dosing; - 3 different performance settings to choose from.
Characteristics
| Electromagnet | M70 |
| Producer | AQUA |
| Material | PVC |
| Power supply | 1х220 V, 50 Hz |
| Control | Microprocessing |
| Power capacity, Wt | 16 |
| Dosage mode: Continually ON-OFF | Yes |
| Input foe sensor | No |
| Dosage mode: proportional PROP | Yes |
| Input for sensor CD | No |
| Input foe temperature sensor | No |
| Input for level sensor reagent | Yes |
| Pump head type | PVC 1/2" |
| Flow rate, l/h | 14 |
| Input 4-20 mA | Yes |
| Pulse input(From Flowmetwer) | Yes |
| Protection level | IP65 |
| Hose standard size | 4x6 |
| Input foe sensor PH | No |
| Pressure, bar | 20 |
| Input for sensor RX | No |
| Meterial of head pump | PVC |
| Serial number of the pump | HC151 |
| Country of Origin | Italy |
| PumpType | dosing solenoid |
| Drive Type | electric |
| Gross weight, kg | 2.86 |
| Length of transport packing, cm | 250 |
| Width of transport packing, cm | 192 |
| Height of transport packing, cm | 160 |
