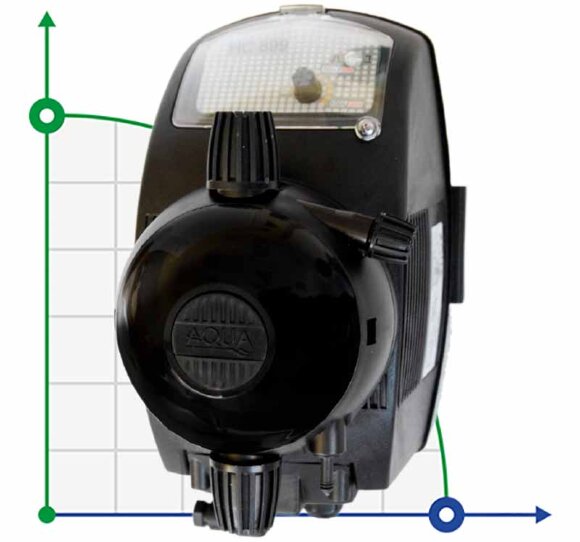

Dosing pump PDE HC899-4 25-2.5/42-1 230V PVC-GL-DT
Also buy with this product
Documentation
Download instructions, catalog for Dosing pump PDE HC899-4 25-2.5/42-1 230V PVC-GL-DT
Overview
Constant flow metering pump with pulse frequency control. Easy adjustment with a single potentiometer and LED. Input for level sensor connection. - Highly resistant PBT housing, suitable for high temperature media and chemicals; - Input for level sensor; - Dual frequency adjustment scale, 0-100% or 0-20%; - Power supply: 230 V AC - 50/60 Hz; - On/off switch; - Protection class IP65; - Analog user interface with one handle and LED; - Manual air valve for quick filling; - Ready for wall or foot mounting (brackets included).
Characteristics
| Electromagnet | M90 |
| Producer | AQUA |
| Material | PVC |
| Power supply | 1х220 V, 50 Hz |
| Control | Manual |
| Power capacity, Wt | 35 |
| Dosage mode: Continually ON-OFF | Yes |
| Input foe sensor | No |
| Dosage mode: proportional PROP | No |
| Input for sensor CD | No |
| Input foe temperature sensor | No |
| Input for level sensor reagent | Yes |
| Pump head type | PVC 1/2" |
| Flow rate, l/h | 42 |
| Input 4-20 mA | No |
| Pulse input(From Flowmetwer) | No |
| Protection level | IP65 |
| Hose standard size | 10x14 |
| Input foe sensor PH | No |
| Pressure, bar | 2.5 |
| Input for sensor RX | No |
| Meterial of head pump | PVC |
| Serial number of the pump | HC899 |
| Country of Origin | Italy |
| PumpType | dosing solenoid |
| Drive Type | electric |
| Gross weight, kg | 5.5 |
| Length of transport packing, cm | 350 |
| Width of transport packing, cm | 295 |
| Height of transport packing, cm | 160 |
