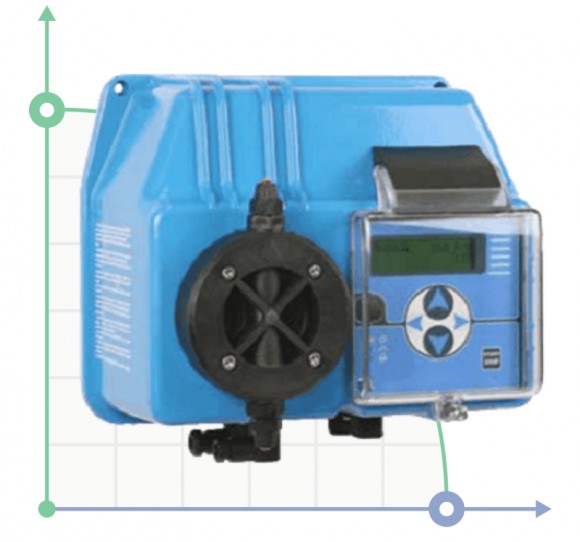

Dosing pump BT MF 50-03 230V/240V with FPM ball valves
Also buy with this product
Documentation
Download instructions, catalog for Dosing pump BT MF 50-03 230V/240V with FPM ball valves
Overview
- Multifunctional digital proportional metering pump.
- Backlit LCD display.
- Dosing modes: manual on / off; timer; proportional: 4-20 mA, from the pulse flow meter: multiplication 1xN, multiplication with memory 1xn(M), Division 1:N; by the set number of ppm.
- Electronic watch.
- Timer.
- Buzzer.
- Relay on/off output for emergency alarm.
- Three indicators for displaying the work status.
- 5 touch buttons for selecting pump operation modes.
- Support for outgoing flow and level sensors (sensors are not included)
Characteristics
| Producer | ETATRON D.S. |
| Material | PVC |
| Power supply | 1х220 V, 50 Hz |
| Control | Microprocessing |
| Power capacity, Wt | 124 W 0,54А |
| Dosage mode: Continually ON-OFF | Yes |
| Input foe sensor | No |
| Length of a pistone stroke, mm | 4,6 |
| Model | MF |
| Dosage mode: proportional PROP | Yes |
| Input for sensor CD | No |
| Valve | Viton |
| Product regulation 0-100% | Yes |
| Input foe temperature sensor | No |
| Input for level sensor reagent | Yes |
| Input mA | No |
| Flow rate, l/h | 50 |
| Input 4-20 mA | Yes |
| Output service relay | Yes |
| Pulse input(From Flowmetwer) | Yes |
| Support for flow sensor | Yes |
| Input foe sensor PH | No |
| Pressure, bar | 3 |
| Input for sensor RX | No |
| Number of pulses | 180 |
| Pump body material | PVC |
| Serial number of the pump | BT |
| Country of Origin | Italy |
| PumpType | dosing solenoid |
| Drive Type | electric |
| Availability of spare parts | Yes |
| Application | algaecide, hypochlorite, caustic, acid, coagulant, of hydrochloric acid, alkalis |
| Analogue for | AquaViva, ASeko, Descon trol S, Emec, FWT, Injecta, Seko |
| Weight, kg | 5,7 |
