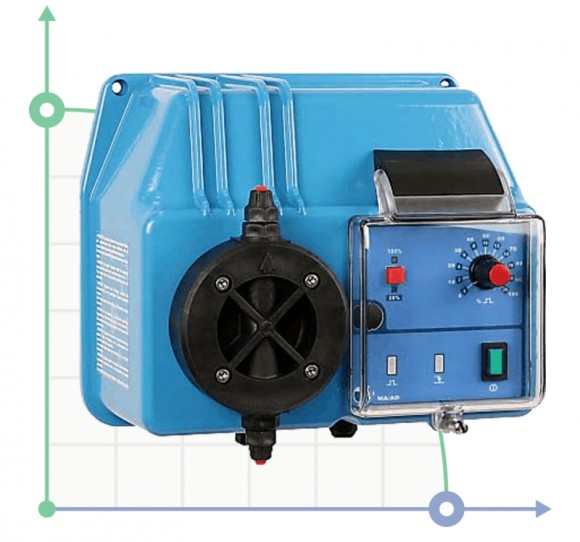

Dosing pump PDE BT MA/AD 10-10 230V/240V
Also buy with this product
1042539
Pre-order only
Documentation
Download instructions, catalog for Dosing pump PDE BT MA/AD 10-10 230V/240V
Overview
BT - wall mount external dimensions 203x244x168 mm
- Analog diaphragm dosing pump. - Constant on/OFF dosing mode
- Dual output adjustment scale 0÷100% and 0÷20%
- Level sensor support (sensor not included)
Types of heads (for more information, see in the pump head section):
- A - head STD PP 2-15 l / h with manual air vent valve
- B-STD PP head for 20 L/H pumps
- C-STD PP head for 1 L/H pumps (BT-BTB-HD-HDS)
- D – PVC STD head for pumps 2-5 L / H (20 bar)
- E1-STD PVC pump head 30 L / H (LIP Valves A12)
- E2-STD PVC head for pumps 50-80 l / h (ceramic ball valves)
• Series of wall-mounted (BT) and horizontal (BTB) diaphragm dosing pumps with analog and microprocessor control • anti-acid plastic (BTB)/aluminum (BT) housing covered with epoxy paint, pump control panel protected by transparent polycarbonate cover • protection class: IP65 - performance from 1 to 80 L/H, back pressure up to 20 bar
Characteristics
| Producer | ETATRON D.S. |
| Material | PP |
| Power supply | 1х220 V, 50 Hz |
| Control | Manual |
| Power capacity, Wt | 95 W 0,39А |
| Dosage mode: Continually ON-OFF | Yes |
| Input foe sensor | No |
| Length of a pistone stroke, mm | 1,04 |
| Model | MA/AD |
| Dosage mode: proportional PROP | No |
| Input for sensor CD | No |
| Valve | Viton |
| Product regulation 0-100% | Yes |
| Input foe temperature sensor | No |
| Input for level sensor reagent | Yes |
| Input mA | No |
| Flow rate, l/h | 10 |
| Input 4-20 mA | No |
| Output service relay | No |
| Pulse input(From Flowmetwer) | No |
| Support for flow sensor | No |
| Input foe sensor PH | No |
| Pressure, bar | 10 |
| Input for sensor RX | No |
| Number of pulses | 160 |
| Pump body material | Polypropylene |
| Serial number of the pump | BT |
| Country of Origin | Italy |
| PumpType | dosing solenoid |
| Drive Type | electric |
| Availability of spare parts | Yes |
| Application | algaecide, hypochlorite, caustic, acid, coagulant, of hydrochloric acid, alkalis |
| Analogue for | AquaViva, ASeko, Descon trol S, Emec, FWT, Injecta, Seko |
| Weight, kg | 5,4 |
