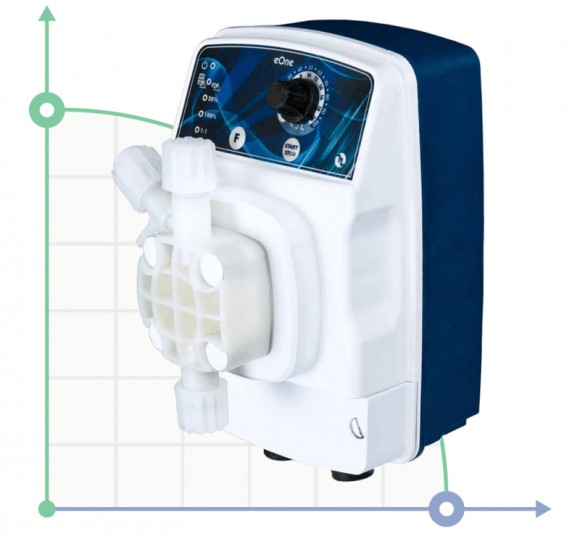

Dosing pump PDE eONE MА 07-10 100/250V
Also buy with this product
Documentation
Download instructions, catalog for Dosing pump PDE eONE MА 07-10 100/250V
Overview
Dosage mode:
- Manual ON /OFF with a double scale of 10-100% and 2-20% performance adjustment (a micro-controller is used for clearer adjustment of pump performance)
- Proportional to 1:1 from the pulse flow meter (one received pulse from the flow meter = 1 pump injection). The pump is equipped with protection functions (on/off):
UNDERLOAD-monitoring the absence of the dosed reagent on the intake line; OVERLOAD – monitoring the excess of the permissible back pressure in the system.
Maximum pulse frequency 300 imp / min
Power consumption 26 W (varies depending on the back pressure)
Level sensor support (sensor not included).
Characteristics
| Producer | ETATRON D.S. |
| Material | PVDF |
| Power supply | 1х220 V, 50 Hz |
| Control | Manual |
| Power capacity, Wt | 7/26 |
| Dosage mode: Continually ON-OFF | Yes |
| Input foe sensor | No |
| Model | MА |
| Dosage mode: proportional PROP | Yes |
| Input for sensor CD | No |
| Product regulation 0-100% | Yes |
| Input foe temperature sensor | No |
| Impulse volume | 0,39 |
| Input for level sensor reagent | Yes |
| Input mA | No |
| Flow rate, l/h | 7 |
| Input 4-20 mA | No |
| Output service relay | No |
| Pulse input(From Flowmetwer) | Yes |
| Support for flow sensor | No |
| Input foe sensor PH | No |
| Pressure, bar | 10 |
| Input for sensor RX | No |
| Number of pulses | 300 |
| Pump body material | PVDF |
| Serial number of the pump | eONE |
| Country of Origin | Italy |
| PumpType | dosing solenoid |
| Drive Type | electric |
| Availability of spare parts | Yes |
| Application | algaecide, hypochlorite, caustic, acid, coagulant, of hydrochloric acid, alkalis |
| Analogue for | AquaViva, ASeko, Descon trol S, Emec, FWT, Injecta, Seko |
| Weight, kg | 4,5 |
