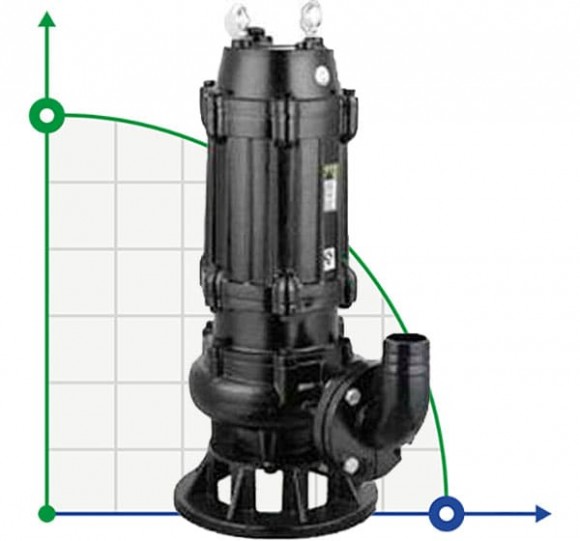

WQK 25-10-2,2 Sanitary pump for wastewater disposal
Also buy with this product
Documentation
Download instructions, catalog for WQK 25-10-2,2 Sanitary pump for wastewater disposal
Overview
WQK Series pumps are designed for pumping of contaminated water and fluids containing solid fecal particles. The WQK pump impeller has a sharpened edge which makes it possible to grind solid particles of big sizes. The pumps are widely applied in sewage pumping stations, as well as in communal and agricultural sector facilities.
Characteristics
| Producer | BTS Engineering |
| Pump capacity, cu.m/hour | 25 |
| Feed height, m | 10 |
| Power capacity, kW | 2,2 |
| Material | cast iron |
| Output pipe diameter | DN50 |
| Rate of turn, rpm | 2 860 |
| Power supply | 3х380 V, 50 Hz |
| Nom.pressure, Mpa | 0,8 |
| Max.temperature, C | 40 |
| Nom.flow rate, m3/h | 25 |
| Nom.head, m | 10 |
| Material of flow channel | cast iron |
| Serial number of the pump | WQK |
| Country of Origin | China |
| PumpType | submersible drainage and fecal |
| Drive Type | electric |
| Availability of spare parts | Yes |
| Warranty, months | 12 |
| Application | sewerage, KNS, diversion drains, treatment facilities, septic tank |
