Veneroni LVE 12, 15 kW, 2m, 306 m3/h electric vertical pump
Also buy with this product
Documentation
Download instructions, catalog for Veneroni LVE 12, 15 kW, 2m, 306 m3/h electric vertical pump
Overview

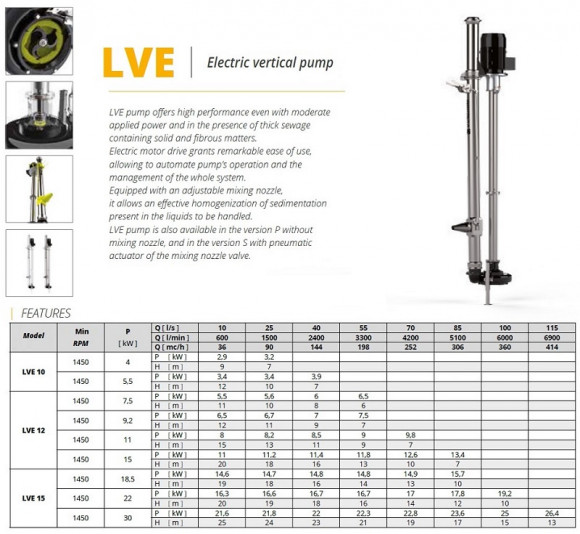

The LVE pump provides high performance even with moderate applied power and in the presence of dense wastewater containing solid and fibrous substances.
The electric drive provides remarkable ease of use, allowing you to automate the operation of the pump and control the entire system.
Equipped with an adjustable mixing nozzle, it allows you to effectively homogenize the sediment present in the treated liquids.
The LVE pump is also available in the P version without a mixing nozzle and in the S version with a pneumatic actuation of the mixing nozzle valve.
Characteristics
| Producer | Veneroni |
| Pump capacity, cu.m/hour | 306 |
| Feed height, m | 20 |
| Power capacity, kW | 15 |
| Material | cast iron |
| Output pipe diameter | 120 |
| Rate of turn, rpm | 1 450 |
| Max. head, m | 20 |
| Working length, m | 2 |
| Max.flow rate, m3/h | 306 |
| Housing material | cast iron GS 400 |
| Pump body material | чугун GS 400 |
| Serial number of the pump | LVE |
| Country of Origin | Italy |
| PumpType | semi-submersible |
| Drive Type | electric |
| Installation Type | vertical |
| Warranty, months | 12 |
| Weight, kg | 190 |
