Vertical centrifugal pump IM 160 PVDF
Also buy with this product
Overview

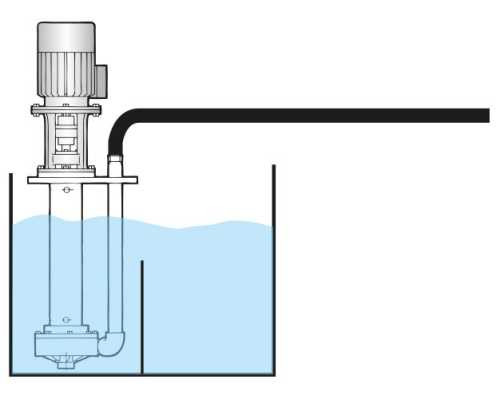

Vertical submersible chemical series pumps IM polymer have high performance and are designed for permanent installation on the container with the direct dipping into the vessel, they actuates an electric motor with direct drive (max. 3000 rpm) used for rapid evacuation of liquid at a rate of 16 to 55 m3 / h.
Key features of the vertical transfer pump
- high performance transfer pump to 55 m3 / h
- pump made without welds
- a pump pumping liquids containing insoluble particle to 9 mm.
- it can be used with particularly contaminated fluids
- may be delivered without the engine; Pump is fully dismantled
- Engine replacement occurs without disassembling
- simple service and replacement of component parts
Characteristics
| Producer | DEBEM |
| Pump capacity, cu.m/hour | 55 |
| Feed height, m | 32 |
| Power capacity, kW | 7,5 |
| Material | PVDF |
| Input pipe diameter | 2” 1/2 |
| Output pipe diameter | 2” |
| Power supply | 3х380 V, 50 Hz |
| Max.flow rate, m3/h | 55 |
| Model | IM 160 |
| Max.temperature, C | 95 |
| Max.viscosity, cPs | 500 |
| Max. head, m | 32 |
| Length of immersed part | 500 mm |
| Material of flow channel | PVDF |
| Seal material | VITON |
| Serial number of the pump | IM |
| Country of Origin | Italy |
| PumpType | semi-submersible |
| Drive Type | electric |
| Installation Type | vertical |
| Availability of spare parts | Yes |
| Weight, kg | 94 |
