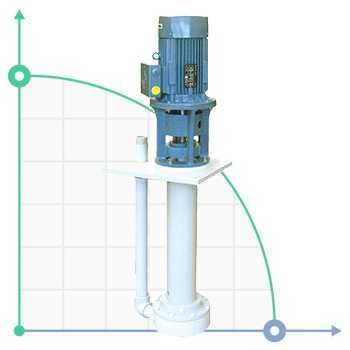

Vertical centrifugal pump IM 180, SP, 800 mm, without engine
Also buy with this product
Overview
Vertical submersible chemical series pumps IM polymer have high performance and are designed for permanent installation on the container with the direct dipping into the vessel, they actuates an electric motor with direct drive (max. 3000 rpm) used for rapid evacuation of liquid at a rate of 16 to 55 m3 / h.
Key features IM 180 vertical pump
- high performance transfer pump 75 m3 / h
- pump made without welds
- a pump pumping liquids containing insoluble particles of up to 11 mm.
- it can be used with particularly contaminated fluids
- may be delivered without the engine; Pump is fully dismantled
- Engine replacement occurs without disassembling
- simple service and replacement of component parts
Characteristics
| Producer | DEBEM |
| Pump capacity, cu.m/hour | 75 |
| Feed height, m | 38 |
| Power capacity, kW | 11 |
| Material | PP |
| Input pipe diameter | 2” 1/2 |
| Output pipe diameter | 2” |
| Max.flow rate, m3/h | 75 |
| Model | IM 180 |
| Max.temperature, C | 65 |
| Max.viscosity, cPs | 500 |
| Max. head, m | 38 |
| Length of immersed part | 800 mm |
| Material of flow channel | PP |
| Seal material | VITON |
| Serial number of the pump | IM |
| Country of Origin | Italy |
| PumpType | semi-submersible |
| Drive Type | electric |
| Installation Type | vertical |
| Availability of spare parts | Yes |
