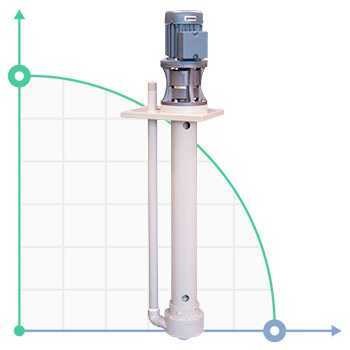

Vertical centrifugal pump IM 80, PP, 500 mm, 0.37 kW
Also buy with this product
Overview
Vertical submersible chemical series pumps IM polymer have high performance and are designed for permanent installation on the container with the direct dipping into the vessel, they actuates an electric motor with direct drive (max. 3000 rpm) used for rapid evacuation of liquid at a rate of 16 to 55 m3 / h.
The possibility of chemical centrifugal pump IM 80
- the centrifugal pump capacity to 6 m3 / h
- pump made without welds
- pumping liquids containing insoluble particles of up to 7 mm.
- can be used with particularly contaminated fluids
- can be supplied without a motor, completely dismountable
- the replacement engine is performed without dismantling the pump
- ease of maintenance and replacement of components (a simple replacement of the compensation sleeve)
Characteristics
| Producer | DEBEM |
| Pump capacity, cu.m/hour | 6 |
| Feed height, m | 7.2 |
| Power capacity, kW | 0,37 |
| Material | PP |
| Input pipe diameter | 1 1/2” |
| Output pipe diameter | 1” |
| Power supply | 3х380 V, 50 Hz |
| Max.flow rate, m3/h | 6 |
| Model | IM 80 |
| Max.temperature, C | 65 |
| Max.viscosity, cPs | 500 |
| Max. head, m | 7.2 |
| Length of immersed part | 500 mm |
| Material of flow channel | PP |
| Seal material | VITON |
| Serial number of the pump | IM |
| Country of Origin | Italy |
| PumpType | semi-submersible |
| Drive Type | electric |
| Installation Type | vertical |
| Availability of spare parts | Yes |
