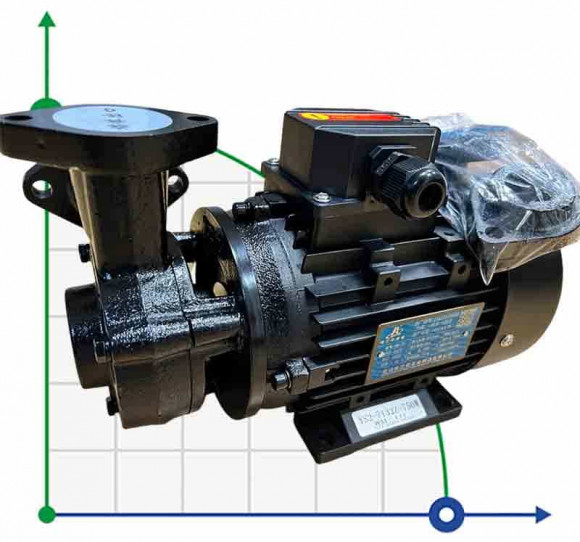

Vortex oil pump WM-10, 380V -30°C+200°C
Also buy with this product
Documentation
Download instructions, catalog for Vortex oil pump WM-10, 380V -30°C+200°C
Overview
Vortex oil pump WM.
Scope of application: mold temperature control, ultrasonic cleaning, test tool, machine cooling, Cyfinder heat preservation, hot and cold switching system.
Circulation medium: water, ethylene glycol, alcohol, thermal oil, hydrocarbon solution, silicone oil and other liquids without particles and fibers.
Characteristics
| Temperature (min), °C | -30 |
| Producer | ALUNAK |
| Pump capacity, cu.m/hour | 3.36 |
| Feed height, m | 38 |
| Power capacity, kW | 0,75 |
| Input pipe diameter | DN 20 |
| Output pipe diameter | DN 20 |
| Rate of turn, rpm | 2 760 |
| Power supply | 3х380 V, 50 Hz |
| Explosion protection | No |
| Max.flow rate, m3/h | 3.36 |
| Operating temperature | thermal conductivity water +5˚С~+160˚С; thermal conductivity oil +5˚С~+200˚С; ethylene glycol -30˚С~+180˚С |
| Max.temperature, C | 200 |
| Flow rate, l/min | 56 |
| Nom.head, m | 28 |
| Max. head, m | 38 |
| Pressure, bar | 10 |
| Housing material | Сast iron |
| Impeller material | brass |
| Serial number of the pump | WM |
| Country of Origin | China |
| PumpType | vortex |
| Drive Type | electric |
| Installation Type | horizontal |
| Weight, kg | 12,5 |
