BEDJ 120/7-10-12-3 (8 l/s, 70m, 7,5kW) Fire Fighting System
Also buy with this product
Documentation
Download instructions, catalog for BEDJ 120/7-10-12-3 (8 l/s, 70m, 7,5kW) Fire Fighting System
Overview
BEDJ Version:

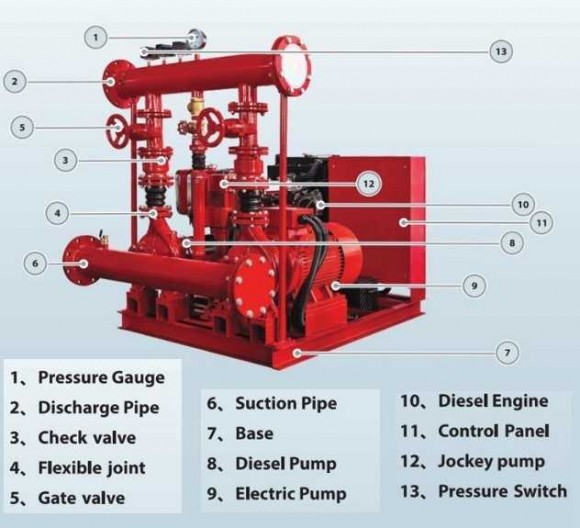

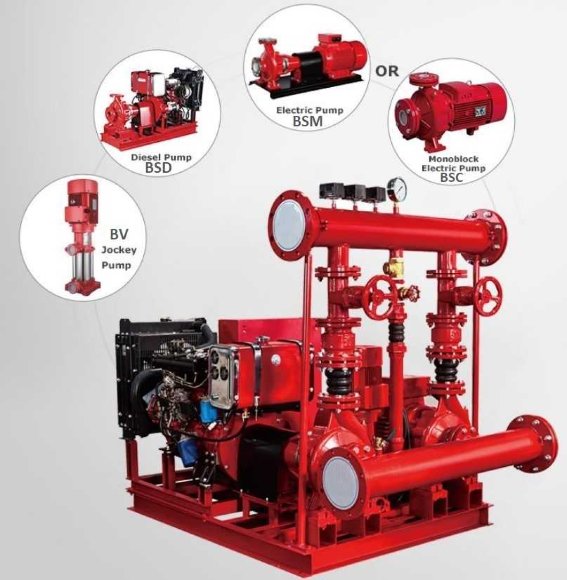

Fire pump set consists of Electric pump+Diesel pump+Jockey pump and all accessories
DESCRIPTION:
- Fire pumps are designed for whole operational life, the maximum reliability is always the first priority
- The components affixed onto a steel framing structure

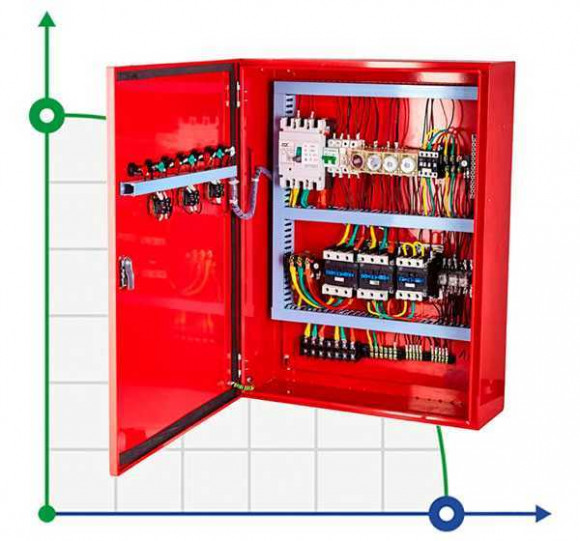

- Each controller has its own individual pressure sensing line
- The suction line should never include a strainer
- Check valve and butterfly valve in the discharge line
- NFPA 20 not allows suction from negative level for end suction and split case pumps

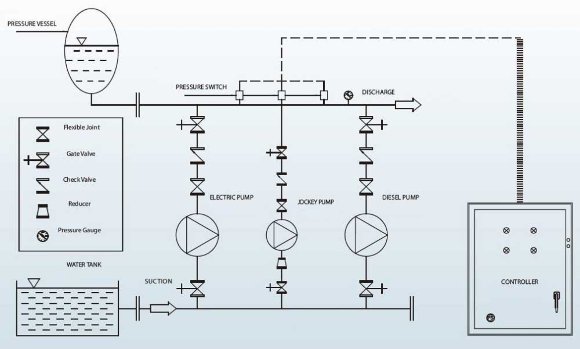

PRINCIPLE:
When pressure drops below the set value, jockey starts running with the signal from the pressure switch and continues running for 10 minutes till the system pressure reaches the set value. If the pressure continues drop, first the main pump starts to run. If the system pressure can't supply and pressure continues drop,the standby pump starts to run.

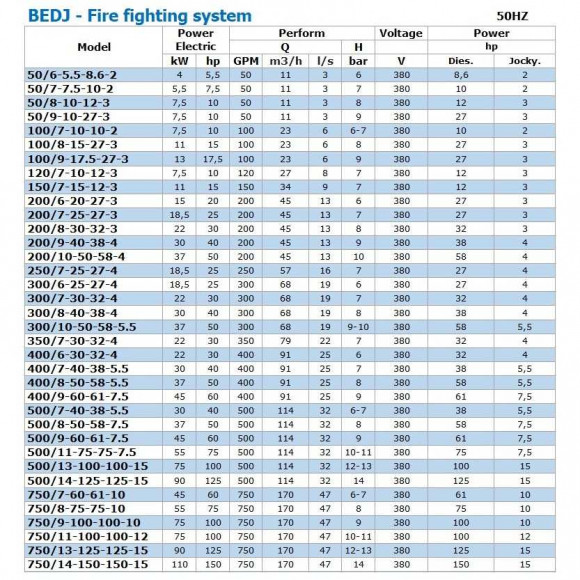

Characteristics
| Producer | BTS Engineering |
| Pump capacity, cu.m/hour | 27 |
| Feed height, m | 70 |
| Power capacity, kW | 7,5 |
| Material | cast iron |
| Power supply | 3х380 V, 50 Hz |
| Nom.pressure, Mpa | 1,6 |
| Specific fuel consumption in g/kWh | 204 |
| Max.temperature, C | 120 |
| Diesel pump power, kW | 9 |
| Jockey pump power, kW | 2,2 |
| Nom.flow rate, m3/h | 27 |
| Nom.head, m | 70 |
| Country of Origin | China |
| Warranty, months | 12 |
| Application | emergency water supply, extinguishing |
| Analogue for | ALLWEILER, Alweller, APV, Aquario, Aquatechnika, ASTA, Bronzoni, Calpeda, Caprari, Cornell, DAB, DPPumps, Ebara, Flygt, Foras, FRISTAM, GEA, Greenpumps, Grundfos, Hidrostal, Hilge, Hobart, Honda, Hydro-Vacuum, HYPRO, Inoxpa, Johnson, Kenle, KOLMEKS, Kripsol, KSB, LOWARA, Nocchi, Odwerk, OMAC, Omnigena, Onga, Packo, PentairSwimmey, Pentax, PERKINS, Rovatti, SAER, SIHI, Simaco, SOMA, Speroni, Sprut, Sterling, Svanehoj, TAJFUN, TEREX, ThuneEureka, Unitech, VARISCO, Varna, WILO, Zenit |
