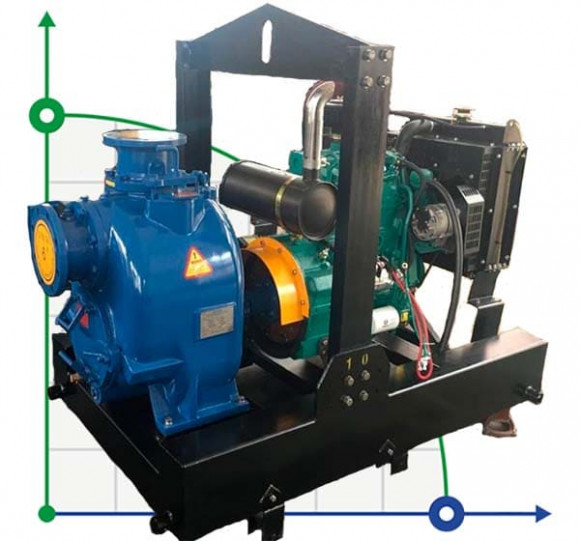

P-6 self-priming diesel pumping station (motor pump)
Also buy with this product
Documentation
Download instructions, catalog for P-6 self-priming diesel pumping station (motor pump)
Characteristics
Producer | Modo |
Pump capacity, cu.m/hour | 340 |
Feed height, m | 28 |
Power capacity, kW | 41 |
Material | cast iron |
Input pipe diameter | DN150 |
Output pipe diameter | DN150 |
Rate of turn, rpm | 1 500 |
Type | diesel |
Specific fuel consumption in g/kWh | 251 |
Max.flow rate, m3/h | 340 |
Seal | Mechanical Seal |
Max. head, m | 28 |
Impeller material | NODULAR CAST IRON |
Shaft material | AISI 420 |
Serial number of the pump | P-6 |
Country of Origin | China |
PumpType | console |
Drive Type | internal combustion engine |
Installation Type | horizontal |
Logistics data: |
