Fire pump station BPDD 1500/7-170-170
Also buy with this product
Documentation
Download instructions, catalog for Fire pump station BPDD 1500/7-170-170
Overview

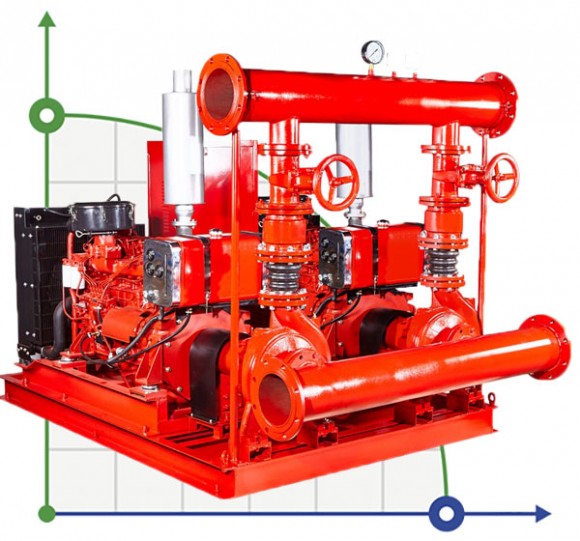

Diesel pump station based on two cantilever pumps, which are driven by diesel engines.
The pump station can work in the mode of the working reserve, the working auxiliary pump depending on wishes of the customer.
The delivery set, in addition to the main elements (pumps, diesel engines, frame) includes: cooling radiator, power take-off shaft, air filter, controller, muffler, tool box, diesel tank, water tank and the like.
Also included
Control cabinet (1 piece)
Suction collector DN200 (1 piece)
Pressure head collector DN200 (1 piece)
Latches DN200 (2 pieces)
Check valves DN200 (2 pcs)
Vibrating inserts DN200 (2 pieces)
Adjustable pressure relay, pressure gauge, support stand (2 pcs.), 150HA battery (4 pcs.), Mounted base frame, wooden box.
Characteristics
| Producer | BTS Engineering |
| Input pipe diameter | DN200 |
| Output pipe diameter | DN200 |
| Rate of turn, rpm | 3 000 |
| Explosion protection | No |
| Nom.pressure, Mpa | 1,6 |
| Specific fuel consumption in g/kWh | 204 |
| Max.flow rate, m3/h | 600 |
| Max.temperature, C | 120 |
| Diesel pump power, kW | 132 |
| Nom.flow rate, m3/h | 360 |
| Nom.head, m | 78 |
| Max. head, m | 84 |
| Material of flow channel | cast iron |
| Country of Origin | China |
| PumpType | console |
| Drive Type | internal combustion engine |
| Installation Type | horizontal |
| Warranty, months | 12 |
| Analogue for | ALLWEILER, Alweller, APV, Aquario, Aquatechnika, ASTA, Bronzoni, Calpeda, Caprari, Cornell, DAB, DPPumps, Ebara, Flygt, Foras, FRISTAM, GEA, Greenpumps, Grundfos, Hidrostal, Hilge, Hobart, Honda, Hydro-Vacuum, HYPRO, Inoxpa, Johnson, Kenle, KOLMEKS, Kripsol, KSB, LOWARA, Nocchi, Odwerk, OMAC, Omnigena, Onga, Packo, PentairSwimmey, Pentax, PERKINS, Rovatti, SAER, SIHI, Simaco, SOMA, Speroni, Sprut, Sterling, Svanehoj, TAJFUN, TEREX, ThuneEureka, Unitech, VARISCO, Varna, WILO, Zenit |
