- DEHAHA screw compressor for laser cutting line with air dehumidification DBZY-20A, 1.51 m3/min, 16 bar, 15 kW, 380V, 50Hz

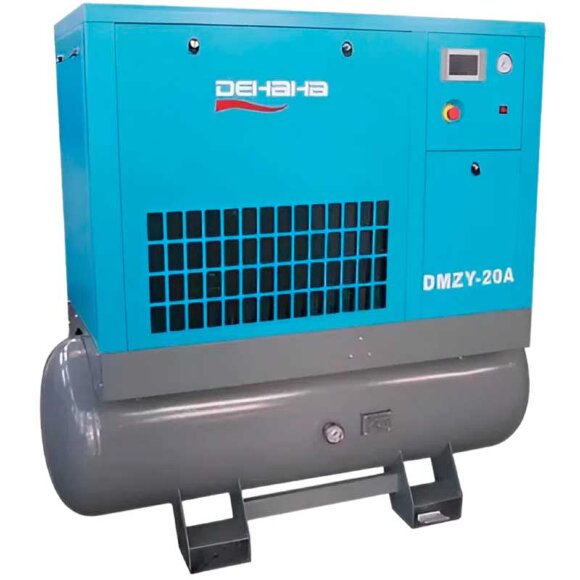

DEHAHA screw compressor for laser cutting line with air dehumidification DBZY-20A, 1.51 m3/min, 16 bar, 15 kW, 380V, 50Hz
Overview
DBZY series laser cutting line screw compressor with air flow of 1.51 m3/min, working pressure of 16 bar, 15 kW motor, 380V, 50Hz, air dehumidification of 2 m3/min, 5 times precision filters, belt drive. ● Original imported air compressor ensures high efficiency and stability, and smoother cutting. ● Multiple protection devices, multiple configurations to reduce shock and noise, low noise. ● High-efficiency air dryer and 5-level high-efficiency special precision filter, high filtration precision, pressure dew point of 2 to 5 °C, gas oil content of 0.001 PPM, solid particle filtration precision of 0.01 μm, ensuring the purity of compressed air. ● Constant temperature control. The start and stop of the cooling fan can be adjusted according to the season to better control the oil temperature to avoid emulsion. ● The large 500L air storage tank has purified air and stable air supply. The settling of compressed air in the air storage tank is conducive to water removal and wastewater discharge. ● The centralized drainage system after treatment helps to maintain cleanliness at the customer's site.
Characteristics
Type of compressor | screw |
Working pressure, bar | 16 |
The volume of receiver, l | 500 |
Producer | DEHAHA |
Power capacity, kW | 15 |
Noise level ,dB | 65 |
Power supply | 3х380 V, 50 Hz |
Series | DBZY |
Flow rate, l/min | 1510 |
Dimensions, mm | 1882x790x1731 |
Warranty, months | 12 |
Logistics data: | |
Weight, kg | 572 |
