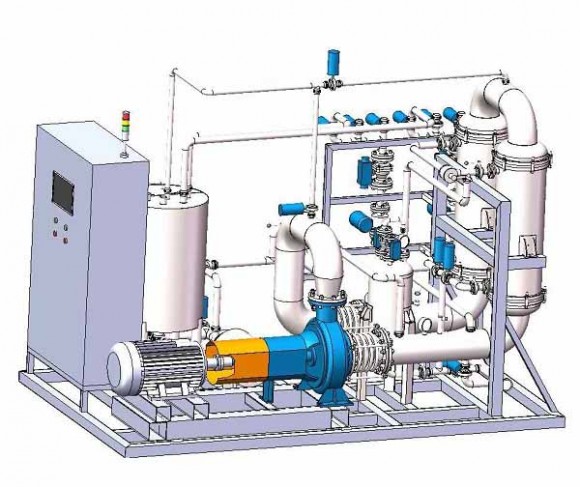

Ceramic microfiltration unit 34m2
Overview
Membrane: CRM3019-200nm,122pcs
Module: CRH61-30,2sets
Total membrane area:34m2
Pump: Feed pump 3.0KW , Circulation pump:22KW
Total Power: 25KW*380V*50Hz
Dimension: L 3600 *W1900*H3200mm
Gross weight: 1800KG
Control: PLC automatic
Supply Scope: membrane, module, Pumps, Valves, Flowrate meter, Pressure sensor, Level sensor, Temperature sensor, Control cabinet, Safty filter, Frame
Characteristics
| Producer | BTS Engineering |
| Pump capacity, m3/h | 3 |
| Power capacity, kW | 25 |
| Power supply | 3х380 V, 50 Hz |
| Dimensions, mm | 3600х1900х3200 |
| Country of Origin | China |
| Weight, kg | 1 800 |
