Battery CLR-51.2V 300Ah, LiFePO4, LFP with touch screen, rack mounted
Documentation
Download instructions, catalog for Battery CLR-51.2V 300Ah, LiFePO4, LFP with touch screen, rack mounted
Overview
Touchscreen battery with rack-mount type. When using high quality lithium iron phosphate (LiFePO4) batteries, the cycle life is increased to more than 6000 times at 80% DOD. Supports 15 units in parallel. EVE A battery cells. Multilingual selection.
A battery with a nominal capacity of 280 Ah can reach 300 Ah when fully charged, so we can designate the battery as 51.2V280Ah or 51.2V300Ah.

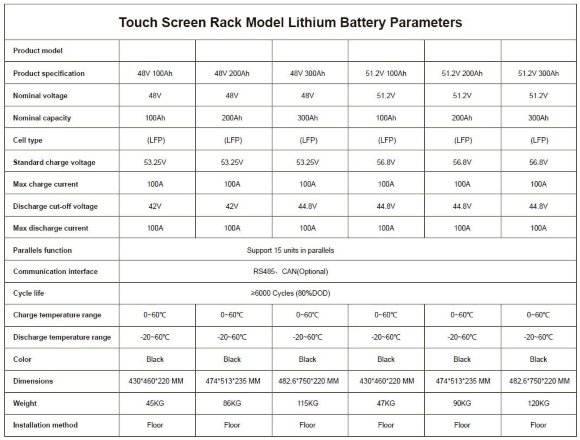

Characteristics
| Producer | Cooli |
| Rated voltage, V | 51.2V |
| Battery capacity, Ah | 300 |
| Energy, kW/h | 15,36 |
| Type | LiFePO4, LFP lithium iron phosphate rechargeable batteries |
| Control | BMS (battery management system) |
| Standard charge voltage, V | 56,8 |
| Discharge cut-off voltage, V | 44,8 |
| Maximum charging current, A | 100 |
| Maximum discharge current, A | 100 |
| Parallel functions | support for 15 units in parallel |

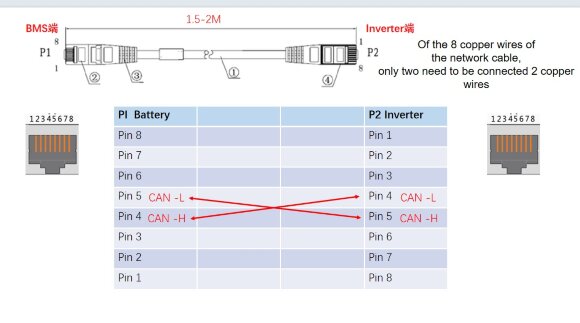

| Interface | RS485, CAN(Optional) |
| Temperature range | charge: 0~60°C; discharge: -20~60°С |
| Cycle life | ≥6000 (80% DOD) |
| Series | CLR |
| Installation method | rack installation |
| Color | Black |
| Dimensions, mm | 482,6x750x220 |
| Country of Origin | China |
| Warranty, months | 12 |
| Weight, kg | 120 |
