High voltage battery cabinet TH-704/280R/HV, LiFePO4, LFP
Documentation
Download instructions, catalog for High voltage battery cabinet TH-704/280R/HV, LiFePO4, LFP
Overview

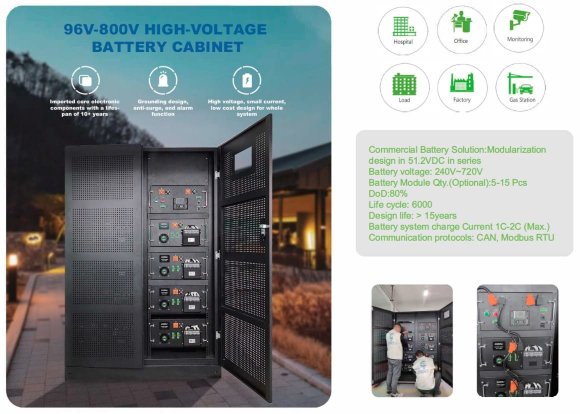

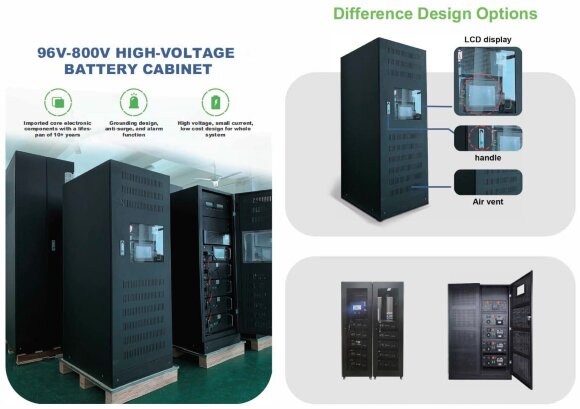

The industrial high-voltage battery cabinet contains the main electronic components with a service life of over 10 years. Grounding design, overvoltage protection and alarm function. High pressure, low flow. Possible use in hospitals, offices, video surveillance systems, factories, gas stations. Commercial solutions for batteries: modularity, design in 51.2 V constant flow in the series. Battery module capacity (additional): 5-15 pcs. DoD: 80%. Life cycle: 6000. Rozrunkovy term of service for more than 15 years. Communication protocols: CAN, Modbus RTU.

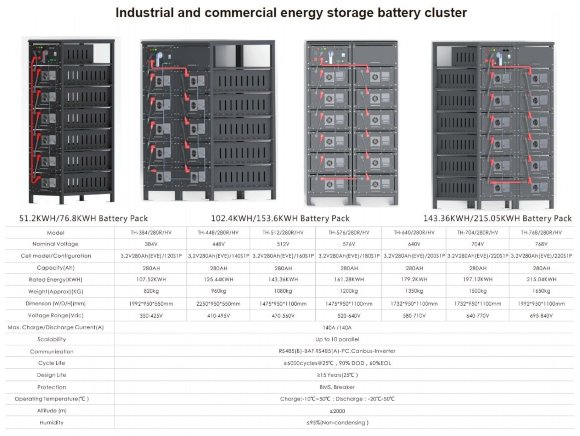

Characteristics
| Producer | Cooli |
| Rated voltage, V | 704V |
| Voltage range, V | 640-770 |
| Energy, kW/h | 197,12 |
| Type | LiFePO4, LFP lithium iron phosphate rechargeable batteries |
| Control | BMS (battery management system) |
| Maximum charging current, A | 140 |
| Maximum discharge current, A | 140 |
| Parallel functions | support for 10 units in parallel |
| Interface | RS485(B)-BAT RS485(A)-PC, Canbus-Inverter |
| Temperature range | charge: -10~50°C; discharge: -20~50°С |
| Cycle life | ≥6000 (25°С, 90% DOD, 60%EOL) |
| Humidity,% | ≤95(Non-condensing) |
| Cell model/configuration | 3.2V280Ah(EVE)/220S1P |
| Service life, years | ≥15(25°С) |
| Series | TH |
| Dimensions, mm | 1732x950x1100 |
| Country of Origin | China |
| Warranty, months | 12 |
| Weight, kg | ~1500 |
