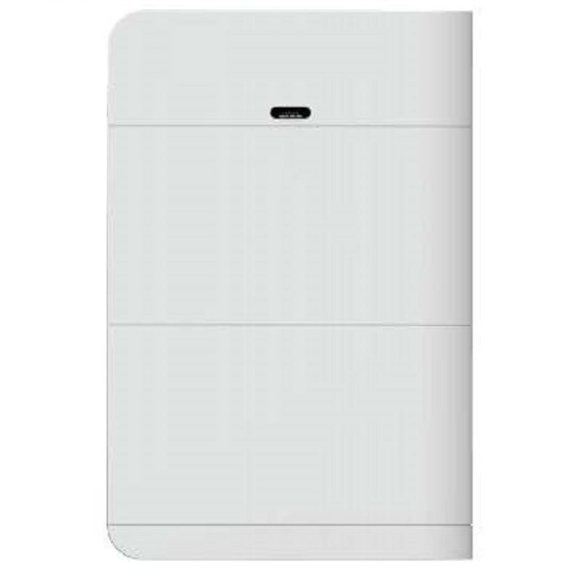

High voltage battery CL-HV-204.8V 50Ah, LiFePO4, LFP
Documentation
Download instructions, catalog for High voltage battery CL-HV-204.8V 50Ah, LiFePO4, LFP
Overview

The high-voltage battery allows you to power up to 10 batteries connected in series. Easy to install, simple to operate, and can be folded away from the middle.
Manual wiring, aligned with traditional high-voltage folding wiring system. Possible use in offices, hotels, hospitals, residential buildings, schools, farms, shops, etc. Interfaces RS232, RS485.CAN. Easy to install, foldable design, safe and long service life.
Characteristics
Producer | Cooli |
Rated voltage, V | 204.8V |
Battery capacity, Ah | 50 |
Energy, kW/h | 10 |
Internal resistance, Ω | ≤80 |
Type | LiFePO4, LFP lithium iron phosphate rechargeable batteries |
Control | BMS (battery management system) |
Standard charge voltage, V | 228±2 |
Discharge cut-off voltage, V | 180±2 |
Maximum charging current, A | 100 |
Interface | RS232-PC, RS485(B)-PC, RS485(A)-Inverter, Canbus-Inverter |
Temperature range | charge: 0~60°C; discharge: -20~60°С |
Cycle life | ≥6000 (80% DOD) |
Service life, years | 15-20 |
Series | CL-HV |
Color | White |
Authentication | UN38.3, MSDS, UL1973(Cell), IEC62619(Cell) |
Dimensions, mm | 630x185x930 |
Country of Origin | China |
Warranty, months | 12 |
Logistics data: | |
Weight, kg | ~53 |
