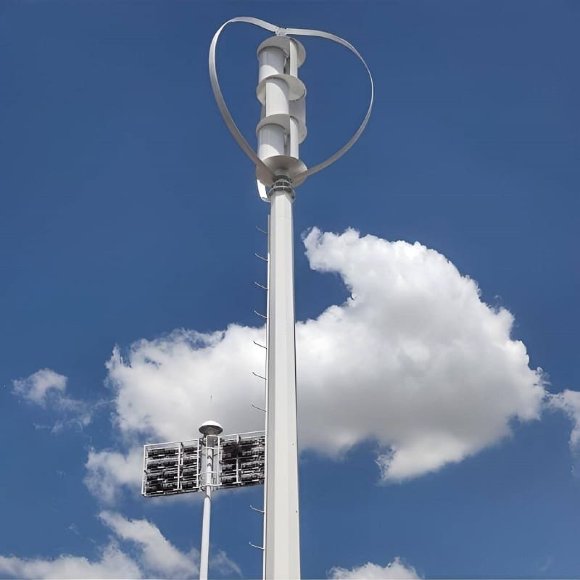

Q-type wind turbine RX-QV5K 5 kW vertical
Documentation
Download instructions, catalog for Q-type wind turbine RX-QV5K 5 kW vertical
Overview

Q-type wind turbines are designed to maximize power output, making them highly efficient. Q-type wind turbines are designed to withstand harsh weather conditions, making them reliable and durable. The main advantages of a vertical axis wind turbine are that they can operate efficiently at low wind speeds, making them ideal for urban and suburban areas where the wind is often gusty and unpredictable. Requires less area to generate the same amount of energy as horizontal wind turbines. Their design facilitates access to wind turbine components, making maintenance and repair easier. Vertical wind turbines operate at lower blade speeds and are less likely to harm birds and bats. Also, vertical wind turbines are often considered more aesthetically pleasing and less obtrusive than horizontal ones.
Characteristics
Cut-in Speed, m/s | 3 |
Overload Protection | Electromagnetic Brake |
Survival Speed, m/s | 50 |
Rated power, kW | 5 |
Blades Material | aluminium alloy |
Blades Length, m | 2,5 |
Wind Generator Type | coreless generator |
Wheel Diameter, m | 2,5 |
Working environment humidness | ≤90% |
Maximum power, kW | 5,5 |
Blades Quantity | 3 |
Altitude | ≤4500 |
Start Up Speed, m/s | 2 |
Install Height, m | 3~12 |
Rated Speed, m/s | 11 |
Producer | R&X Energy |
Protection | IP54 |
Noise level ,dB | 30 |
Rated voltage, V | 48V, 96V, 120V, 220V |
Series | Q-Type |
Operating temperature | -40°C +40°C |
Country of Origin | China |
Logistics data: | |
Gross weight, kg | 340 |
