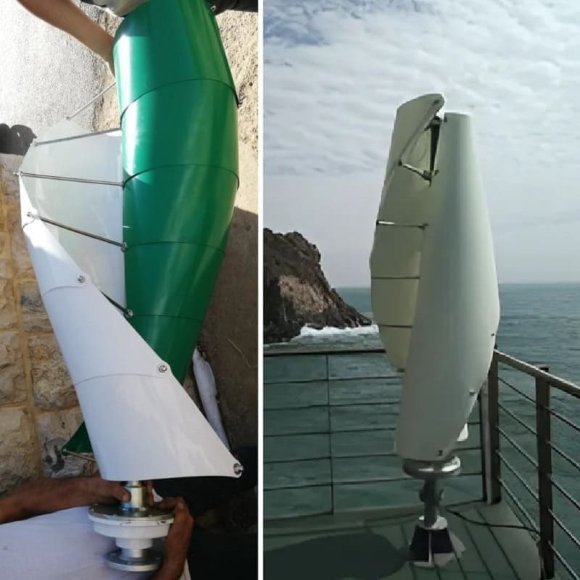

Spiral-type RX-SV8000 8 kW vertical wind generator
Documentation
Download instructions, catalog for Spiral-type RX-SV8000 8 kW vertical wind generator
Overview

Vertical helical wind turbines have a high power factor compared to other vertical axis wind turbine designs. This means they can capture more of the wind's energy and convert it into useful electricity. Because helical turbines have fewer moving parts, they tend to be quieter. The main advantages of a vertical axis wind turbine are that they can operate efficiently at low wind speeds, making them ideal for urban and suburban areas where the wind is often gusty and unpredictable. Requires less area to generate the same amount of energy as horizontal wind turbines. Their design facilitates access to wind turbine components, making maintenance and repair easier. Vertical wind turbines operate at lower blade speeds and are less likely to harm birds and bats. Also, vertical wind turbines are often considered more aesthetically pleasing and less obtrusive than horizontal ones.
Characteristics
Cut-in Speed, m/s | 4 |
Overload Protection | Electromagnetic Brake |
Survival Speed, m/s | 45 |
Rated power, kW | 8 |
Blades Material | glass fibre |
Blades Length, m | 3,5 |
Wind Generator Type | Permanent magnet and coreless disc type generator |
Wheel Diameter, m | 1,2 |
Working environment humidness | ≤90% |
Maximum power, kW | 8,5 |
Blades Quantity | 2 |
Altitude | ≤4500 |
Start Up Speed, m/s | 2 |
Install Height, m | 6~12 |
Rated Speed, m/s | 12 |
Producer | R&X Energy |
Protection | IP54 |
Noise level ,dB | 30 |
Rated voltage, V | 48V, 96V, 120V, 220V |
Series | Spiral Type |
Operating temperature | -40°C +40°C |
Country of Origin | China |
Logistics data: | |
Gross weight, kg | 280 |
Packaging | 48x48x50cm; 95x35x36cm; 95x35x36cm; 370x26x26cm |
