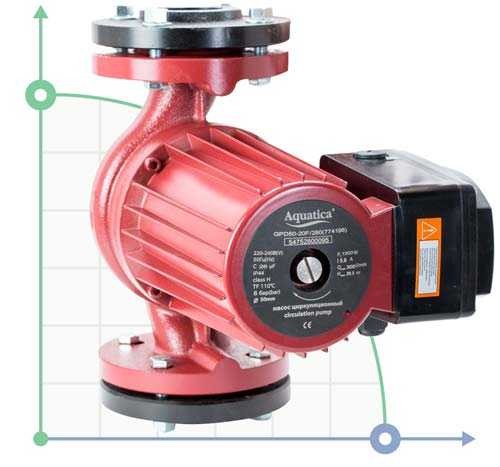

Flanged circulation pump 1.3kW Hmax 12.3m Qmax 550l/min DN65 300mm + matching flange AQUATICA
Overview
Pump circulation flange 1,3kVt Hmax 12,3m Qmax 550l / min DN65 300mm + mating flange AQUATICA (774,169) These pumps are designed for pumping clean water, may be used for water circulation in the central and zonal heating systems, air conditioning systems and in the hot water systems, Pumping Unit: - Body: cast iron; - The motor shaft: ceramic; - Impeller: technopolymer Motor: - Motor type: asynchronous, low noise; - the stator windings of copper; - motor stator sleeve: Stainless steel AISI 304; - Bearing: Ceramic groove; - Voltage: 220-240V; - Frequency: 50 Hz; - Insulation class: H; - Protection: IP44, Nozzle: - DN pump 65; - DN flange 65, applying conditions: - maximum liquid temperature: +110 ºC; - Maximum ambient temperature: +40 ºC; - Permitted system pressure up to 10 bar; - only clean water without abrasive impurities (sand, clay, lime and
Characteristics
| Producer | AQUATICA |
| Pump capacity, cu.m/hour | 33 |
| Feed height, m | 12.3 |
| Power capacity, kW | 1,3 |
| Power supply | 1х220 V, 50 Hz |
| Max.flow rate, m3/h | 33 |
| Length, mm | 335 |
| Max.medium temperature, Celsius degree | 110 |
| The diameter of loaded solid particles, mm | 0.2 |
| Nom.head, m | 8 |
| Max. head, m | 12.3 |
| Height, mm | 300 |
| Pressure, bar | 10 |
| Country of Origin | China |
| Availability of spare parts | Yes |
