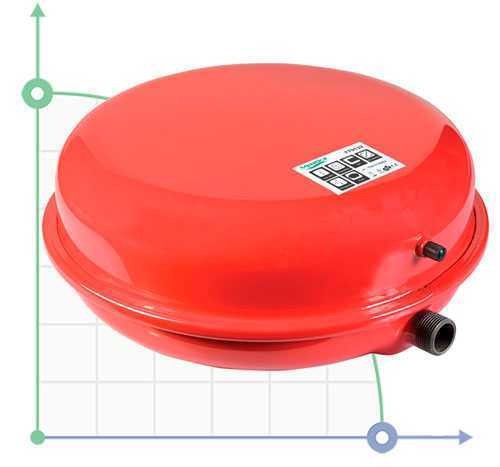

Tank for heating flat 10l Ø325 AQUATICA (779,133)
Overview
Tank for heating flat 10l Ø325 AQUATICA (779133) Membrane expansion tanks are used to create a closed heating systems of various sizes in cottages, homes and other buildings having individual heating system may be used in heating systems, air conditioning and refrigeration systems. Membrane Expansion tanks are designed to compensate for changes of volume of coolant depending on its characteristics temperatury.Tehnicheskie: Metal case of two steel halves painted steel alloy; membrane separating the enclosure into two cavities, made of synthetic ethylene-propylene rubber, which meets the requirements sertifikatsii.Usloviya applications: temperature range membrane of synthetic ethylene-propylene rubber EPDM from -10 ° c to + 99ºS; maximum air pressure in the cavity: up to 5 bar maximum system pressure: 5 bar; warranty time: 18 mesyatsev.Kupit tank for systems
Characteristics
| Producer | AQUATICA |
| Input pipe diameter | G3/4 |
| Nom.pressure, Mpa | 0,4 |
| Length, mm | 325 |
| Volume, l | 10 |
| Max.temperature, C | 100 |
| Max.medium temperature, Celsius degree | 99 |
| Width, mm | 325 |
| Height, mm | 136 |
| Pressure, bar | 4 |
| Country of Origin | China |
