Station 0.75kVt Qmax Hmax 40m 85l / min (samovsmok. Pump) 24l Leo 3.0
Overview

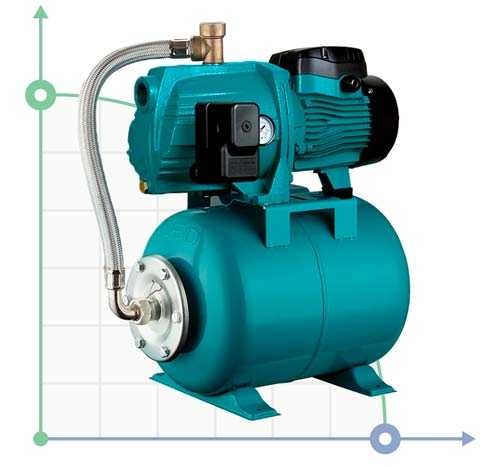

Water station 0.75kVt Hmax Qmax 85l 40m / min (self-priming centrifugal) 24l LEO 3.0 (776384) Water Stations are equipped with a pressure accumulator 24 liters and control automatics. Stations intended for pumping clean water and can be used: for domestic water, auxiliary equipment, lifting the water in the high and low pressure conduits for irrigation of gardens, greenhouses and greenhouses. The pressure switch controls the operation of the electric pump - the pressure switch setting is P (ON) 1.4 bar / R (off) 2.8 bar. Installation of the equipment must be carried out in places protected from the weather and moisture. Pumping Unit: - Body: cast iron with anti-corrosion treatment; - Impeller: AISI 304 stainless steel; - Engine Shaft: Stainless steel AISI 304; - Accumulator: painted steel; - Automation: pressure switch; - The pressure gauge is included in the box. Motor: - Motor type: asynchronous
Characteristics
| Producer | LEO |
| Pump capacity, cu.m/hour | 5.1 |
| Feed height, m | 40 |
| Power capacity, kW | 0,75 |
| Input pipe diameter | G1 |
| Power supply | 1х220 V, 50 Hz |
| Max.flow rate, m3/h | 5.1 |
| Length, mm | 485 |
| Max.medium temperature, Celsius degree | 40 |
| Width, mm | 316 |
| Nom.head, m | 23.9 |
| Max. head, m | 40 |
| Height, mm | 537 |
| Country of Origin | China |
