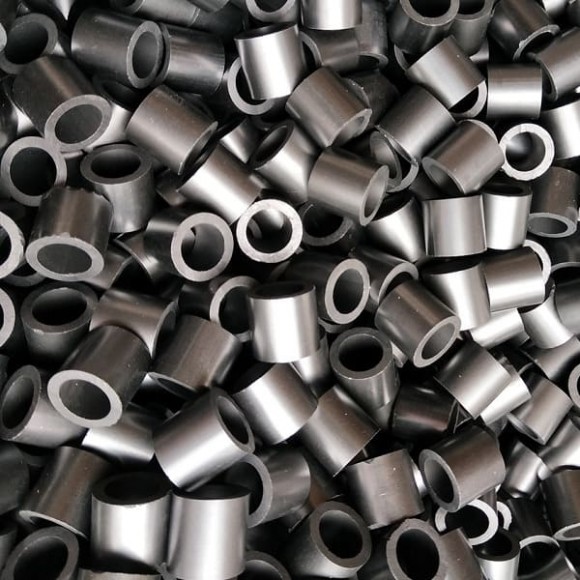

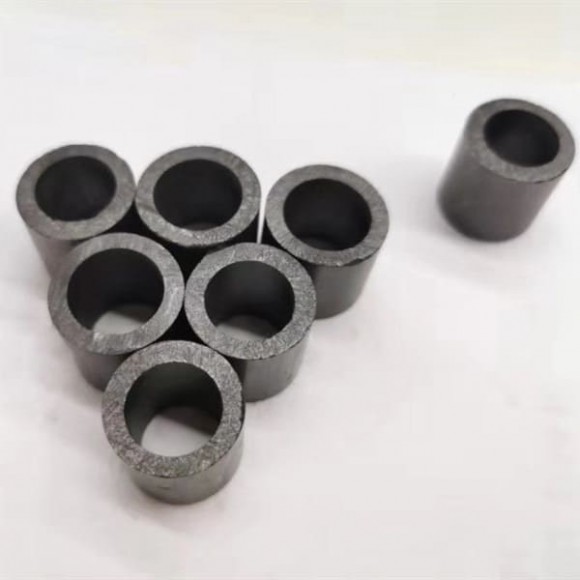

Raschig carbon rings 80 mm

Raschig carbon rings 80 mm Keywords: raschig carbon ring, graphite ring, carbon hollow ring The carbon (graphite) Raschig ring is highly resistant to the influence of high frequencies, strong acid or strong alkali, where packings made of other materials, such as ceramics, plastic and metal, can easily easily corrode. The carbon (graphite) Raschig ring is characterized by high resistance in the environment of HF, strong acid or strong alkali, where packings made of other materials, such as ceramics, plastic and metal, can easily be corroded. Advantages: The Raschig carbon ring has a low coefficient of thermal expansion, high resistance to high-frequency radiation, strong acids and strong alkaline environments, as well as high weight and high mechanical strength. Technical specifications: Volume density, kg/m3 - ≥1500 Compressive strength, Mpa - ≥79.5 Bending strength, Mpa ≥35 Thermal conductivity, W/m.k - 31,4x10-6 (129 °C) Temperature resistance, °C - 400 Size, mm -80x80x9 Surface area, m2/m2 - 76 Free volume, ε% m3 / m3 - 0.68 Quantity, pcs/m3 - 1400 Bulk density, kg/m3 - 650-700 Dry packing coefficient, m-1 - 243
