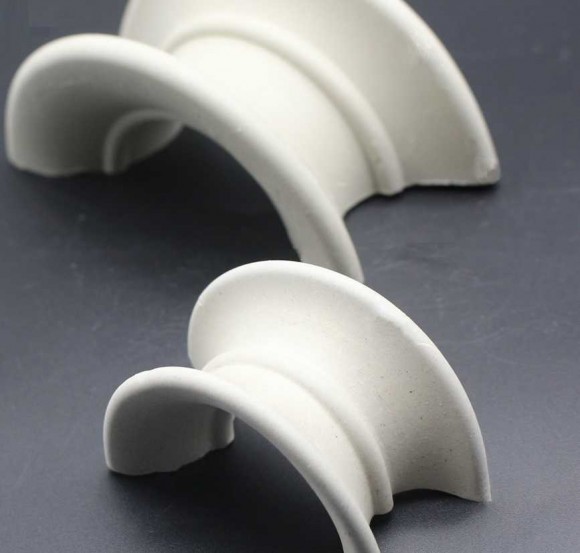

Ceramic Saddle Ring, 50x40x5 mm
Documentation
Download instructions, catalog for Ceramic Saddle Ring, 50x40x5 mm
Overview
When it comes to random packing’s and especially for corrosive applications, ceramic saddles are not only among the best but also most frequently used. They are mainly used in corrosive atmospheres and in heat transfer applications since they are of high resistance to thermal shock and chemical attacks.
Characteristics
| Producer | BTS Engineering |
| Material | Ceramics |
| Diameter, mm | 50 |
| Nozzle type | Intalox Saddles |
| Pour density, kg/m3 | 522 |
| Specific surface area, m2/m3 | 142 |
| Dimensions, mm | 50x40x5 |
| Void factor, % | 76 |
| Quantity m.cubic | 8 243 |
| Application | absorber, dehydration, calciner, desorber, distillation, rectification, water saturation, packed columns, gas cleaning |
| Analogue for | Munters, НКС DOLSIN, AMACS, Ultimo Engineers, MTE, Pall Ring Company, MACH Engineering LLC, Christy Catalytics, Koch-Glitsch |
