Saddle-shaped nozzle Interpack, AISI 304, 10x0,3 mm, VFF
Documentation
Download instructions, catalog for Saddle-shaped nozzle Interpack, AISI 304, 10x0,3 mm, VFF
Overview

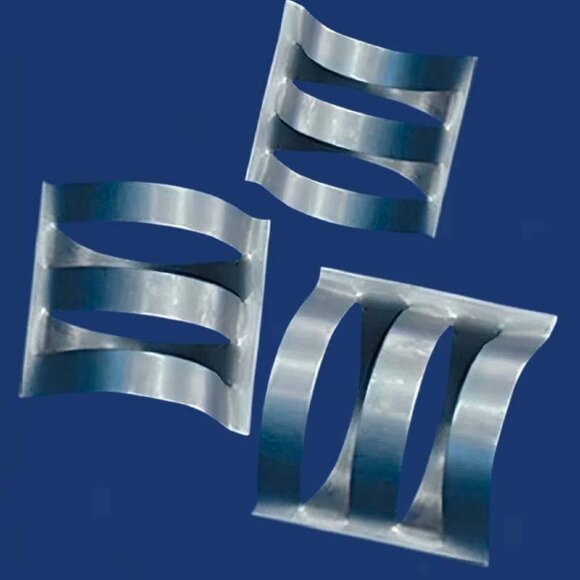

The Interpack metal saddle-shaped nozzle was invented by the American scientist Norton in 1978, This is a new type of irregular nozzle. In the late 70s, two similar products were also invented. One of them is a metal rectangular saddle-shaped nozzle, the other is a metal ring with a double arc. Two bends on the nozzle increase the mechanical strength of the nozzle and its stability. This type of saddle-shaped nozzle has an increased chemical resistance and mechanical density due to its surface. These properties increase their efficiency and service life by 30%. During cyclic operation, the nozzle elements show a high level of heat resistance.

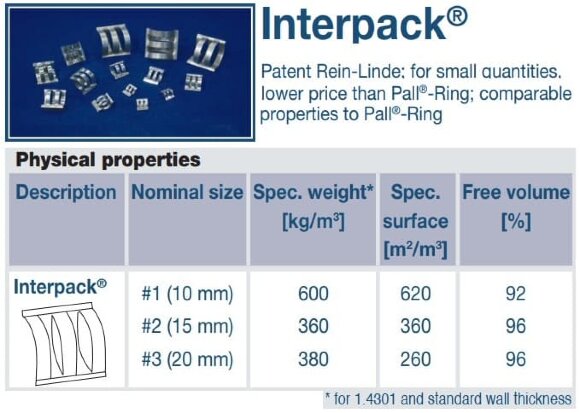

Characteristics
| Producer | VFF |
| Material | AISI 304 stainless steel |
| Diameter, mm | 10 |
| Nozzle type | Interpack |
| Pour density, kg/m3 | 600 |
| Specific surface area, m2/m3 | 620 |
| Dimensions, mm | 10x0,3 |
| Void factor, % | 92 |
| Country of Origin | Germany |
| Analogue for | НКС DOLSIN, AMACS, Ultimo Engineers, MTE, Pall Ring Company, MACH Engineering LLC, Munters, Christy Catalytics, Koch-Glitsch |
