Metal structured packing BX500
Overview

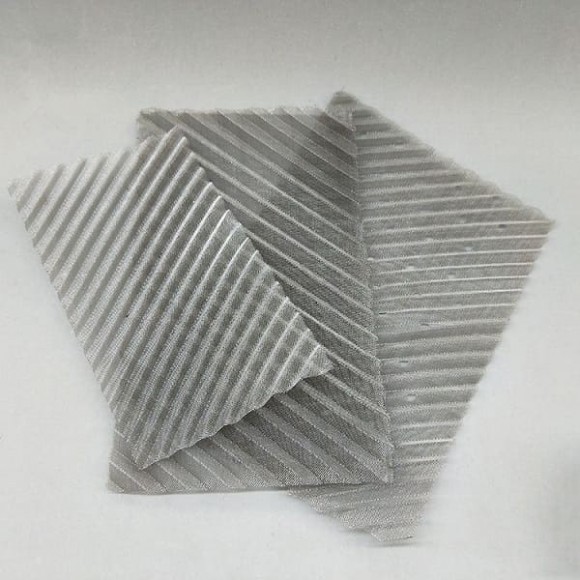

Metal structured packing BX500 is a corrugated packing made of wire mesh.
Keywords: metal perforated plate corrugated packing, metal wire mesh packing, metal structured packing
With low resistance, uniform gas-liquid distribution, high efficiency, large flow, with low magnification effect. It is used to work with negative pressure, normal pressure and high pressure.

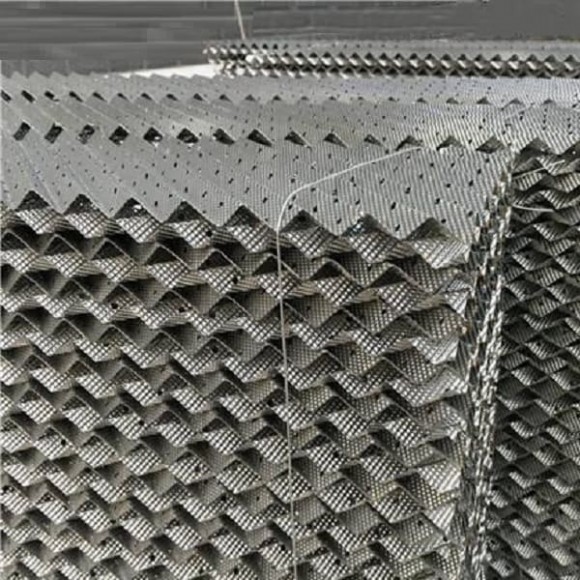

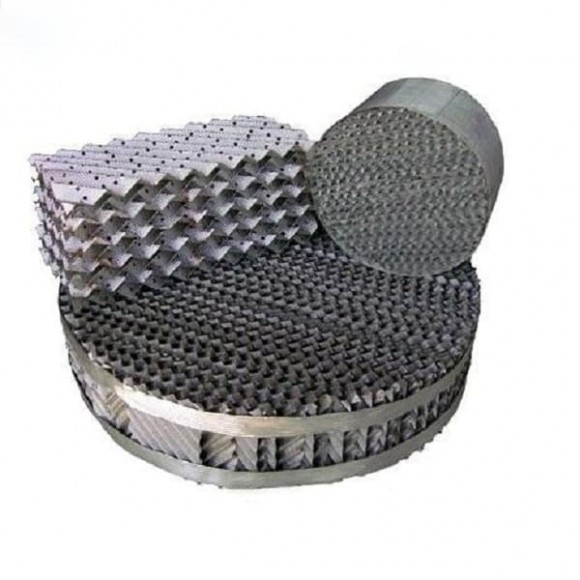

The metal structured packing, mainly includes a corrugated wire mesh packing and a corrugated perforated plate packing.With low resistance, uniform distribution of gas and liquid, high efficiency, large flow. It is used to work with negative pressure, normal pressure and high pressure.
Application:
1. Mass transfer of temperature-sensitive chemical products.
2. Negative pressure, sealing.
3. Periodic and continuous distillation.
4. Cleaning of exhaust gases.
Characteristic:
The height of the projection of the corrugated pipe, mm - 6,3
Theoretical number of plates, m-1 - 4,5-5,5
Surface area, m2/m3 - 500
Void ratio, % - 95
Pressure drop, Mpa/m - 1.05 * 10-4
Characteristics
| Producer | BTS Engineering |
| Material | AISI 304 stainless steel |
| Nozzle type | Cтруктурована насадка (Structured Packing) |
| Specific surface area, m2/m3 | 500 |
| Void factor, % | 95 |
| Country of Origin | China |
| Analogue for | Koch-Glitsch, Christy Catalytics, Munters, MACH Engineering LLC, Pall Ring Company, MTE, Ultimo Engineers, AMACS, НКС DOLSIN |
