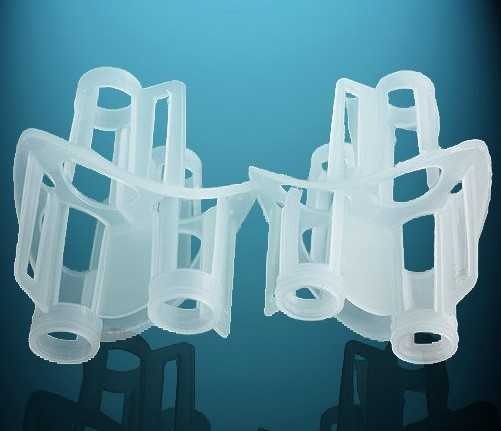

Heilex Ring, PP, 100 mm
Documentation
Download instructions, catalog for Heilex Ring, PP, 100 mm
Overview
Heilex Ring is also called Haier ring. It is a crown-type raschig ring, the new type of Perforated Packing. Wavy-gas liquid interface enlarges liquid's contacting area and also improves gas-liquid flow efficiency. In addition, interlacing cone type vertical structure can largely reduce tower packing nesting, wall flow and unevenly distribution.
Characteristics
| Producer | BTS Engineering |
| Material | PP |
| Diameter, mm | 100 |
| Operating temperature | -35-60 |
| Nozzle type | Heilex Ring |
| Pour density, kg/m3 | 52 |
| Specific surface area, m2/m3 | 55 |
| Dimensions, mm | 100x100 |
| Void factor, % | 95 |
| Quantity m.cubic | 1 850 |
| Application | absorber, dehydration, calciner, desorber, distillation, rectification, water saturation, packed columns, gas cleaning |
| Analogue for | Munters, НКС DOLSIN, AMACS, Ultimo Engineers, MTE, Pall Ring Company, MACH Engineering LLC, Christy Catalytics, Koch-Glitsch |
